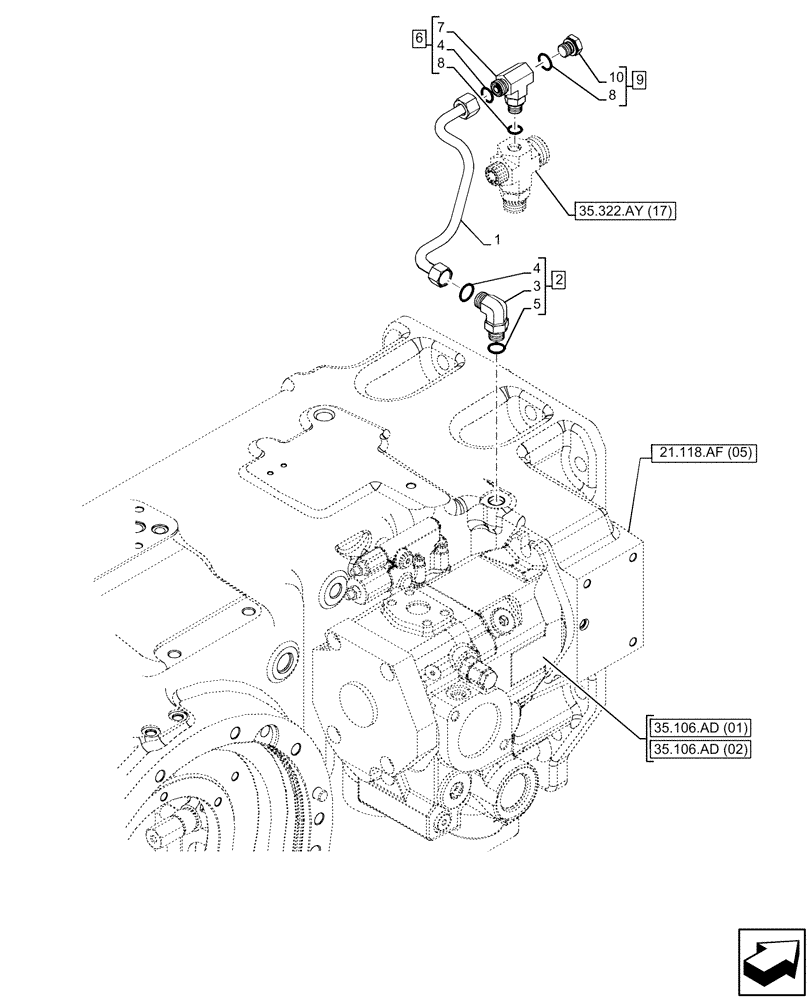

Запчасти Case IH PUMA 150 CVT (21.105.BL[01]) - VAR - 391374, 391161, 338001, 758055, 758935 - TRANSMISSION, LUBRICATION LINE (21) - TRANSMISSION

1

47460165

HYD TUBE

1шт.

2

84372555

90 ELBOW,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

6

84371830

TEE,11/16"-16 ORFS x M14 x 1.5 ORB x M14 x 1.5

ASSY, Incl 4, 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

9

86611704

PLUG,Hex, M14 x 1.5 ORB

ASSY, Incl 8, 10

1шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

1шт.
