Запчасти Case IH PUMA 150 CVT (55.512.CQ[07]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, AIR COMPRESSOR, SWITCH (55) - ELECTRICAL SYSTEMS

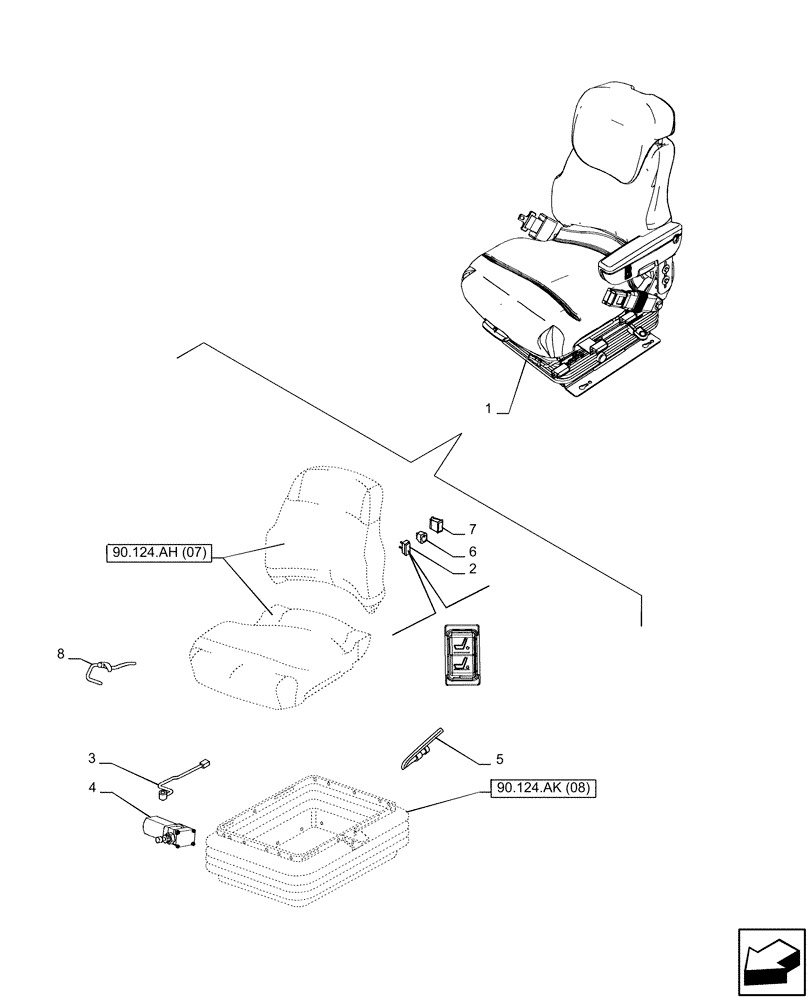

![Схема запчастей Case IH PUMA 150 CVT - (55.512.CQ[07]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, AIR COMPRESSOR, SWITCH (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5368979.png)
90.124.ak (08)
4
7
6
1
8
2
5
3
90.124.ah (07)
№
Артикул
Название
Примечание
Количество
1
84171555
DRIVER SEAT
W/Air Suspension, Assy, Incl 2 - 8
1шт.
See Driver Seat Components also in Figure 90.124.AD (07), 90.124AE (07) 90.124.AH (07), 90.124.AK (08)
1шт.
See Driver Seat Components also in Figure 90.124.AL (07), 90.124.AM (07), 90.151.AD (07)
1шт.
2
87308605
SWITCH
1шт.
3
87529796
SWITCH
1шт.
4
87529857
SEAT ACCESSORY
1шт.
5
87529793
HARNESS
1шт.
6
87308609
PREHEATING SWITCH
1шт.
7
87529797
SWITCH
1шт.
8
87529848
KIT
1шт.
Выбрано товаров: 10
