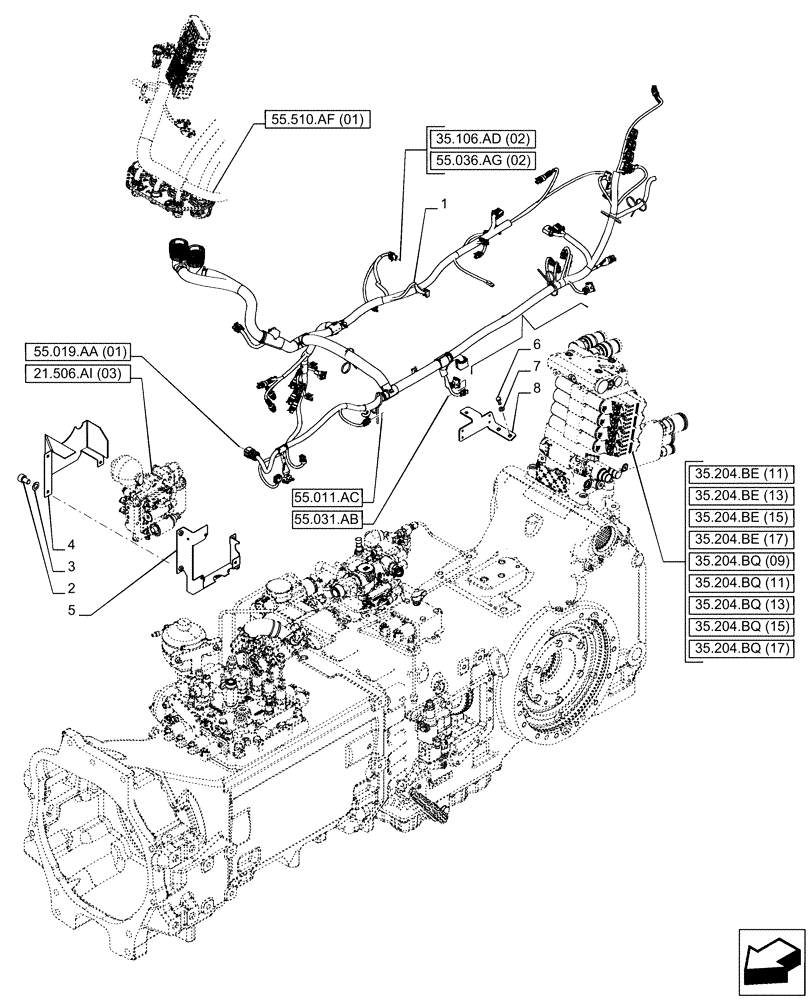

Запчасти Case IH PUMA 150 CVT (55.024.AA[02]) - VAR - 391161, 758055 - TRANSMISSION, HARNESS (55) - ELECTRICAL SYSTEMS

1

47357335

WIRE HARNESS

Transmission (for 120 l/Min & 140 l/Min Pump)

1шт.

For Models W/ Electrohydraulic Rear Remotes (Industrial Var. 332476, 332478)

1шт.

1

47357341

WIRE HARNESS

Transmission (for 120 l/Min & 140 l/Min Pump)

1шт.

For Models W/ Mechanical Rear Remotes (Industrial Var. 332477, 392161)

1шт.

2

14306120

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 8.8, Full Thd

3шт.

3

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

3шт.

4

47457333

COVER

1шт.

5

84148256

SUPPORT

Transmission Solenoid Valve

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

87742627

SUPPORT

1шт.
