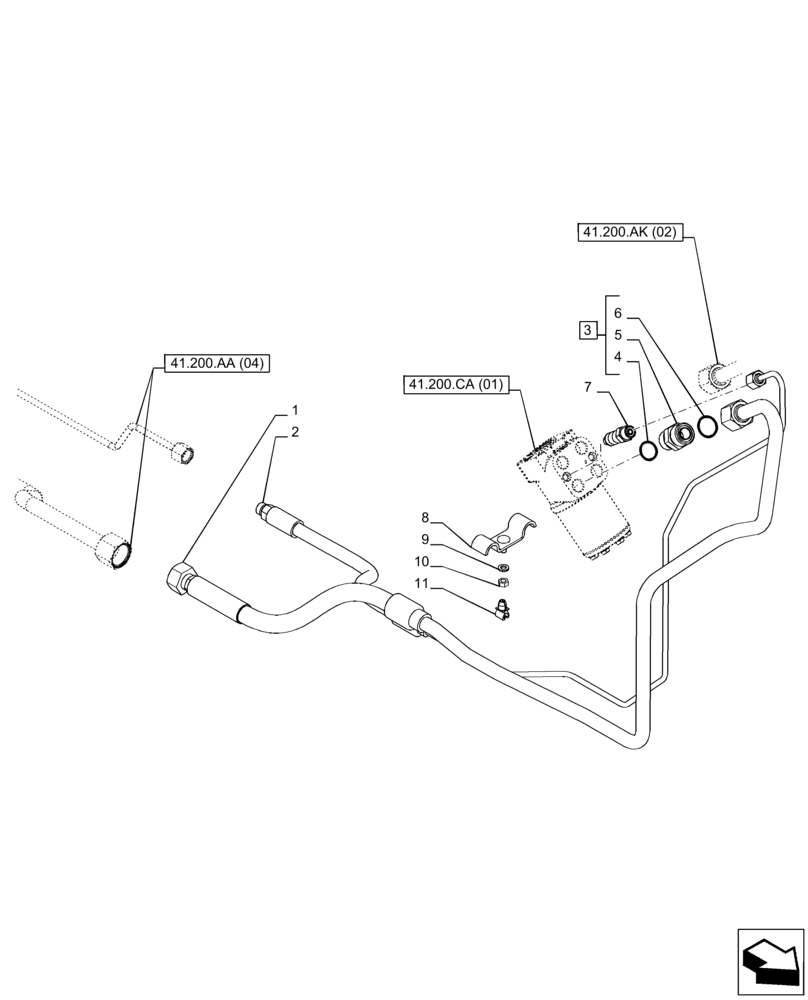

Запчасти Case IH PUMA 150 CVT (41.200.AA[03]) - VAR - 391231, 758270 - STEERING VALVE, LINE, CVT (41) - STEERING

1

47381636

PIPE

Supply to Steering Valve

1шт.

2

47381639

PIPE

LS Steering

1шт.

3

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 4 - 6

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

7

87480170

HYD CONNECTOR,9/16" - 18 ORFS x M10 x 1 ORB

1шт.

8

47630568

BRACKET

1шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

10

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

11

87710266

CLIP,6mm

6mm

1шт.
