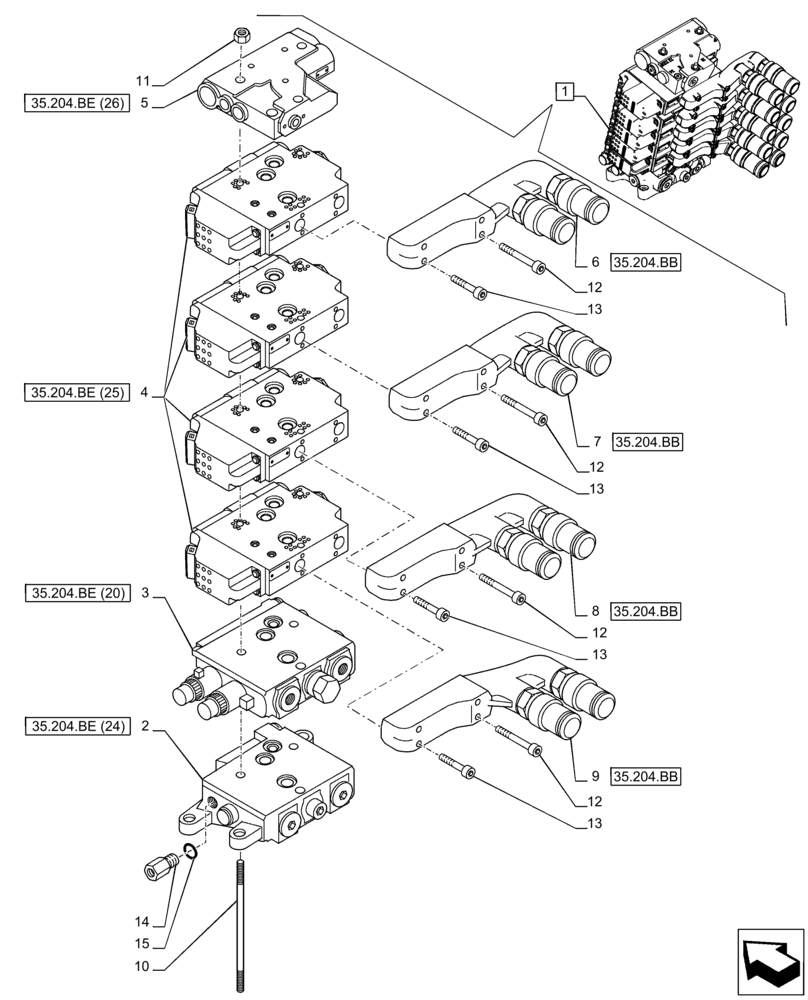

Запчасти Case IH PUMA 150 CVT (35.204.BQ[18]) - VAR - 758061 - 5 REMOTE CONTROL VALVE (EHR), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84230143

CONTROL VALVE

ASSY, Incl 2 - 15

1шт.

2

84142195

HYD VALVE SECTION

1шт.

3

84175671

VALVE SECTION

1шт.

4

84230181

HYD VALVE SECTION

5шт.

5

84230200

HYD VALVE SECTION

1шт.

6

87381965

QUICK MALE COUPLING

4 EHR

1шт.

7

87381964

QUICK MALE COUPLING

3 EHR

1шт.

8

87381963

QUICK MALE COUPLING

2 EHR

1шт.

9

87381958

QUICK MALE COUPLING

1 EHR

1шт.

10

84151302

TRUSS ROD,331mm L

M8

3шт.

11

5195169

NUT,M8

M8

3шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

M6 x 50

8шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

M6 x 35

8шт.

14

5191704

CHECK VALVE

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
