/ / / / / / / / (35.204.BQ[16]) - VAR - 758060 - 4 REMOTE CONTROL VALVE (EHR W/PB), COMPONENTS
Запчасти Case IH PUMA 150 CVT (35.204.BQ[16]) - VAR - 758060 - 4 REMOTE CONTROL VALVE (EHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS

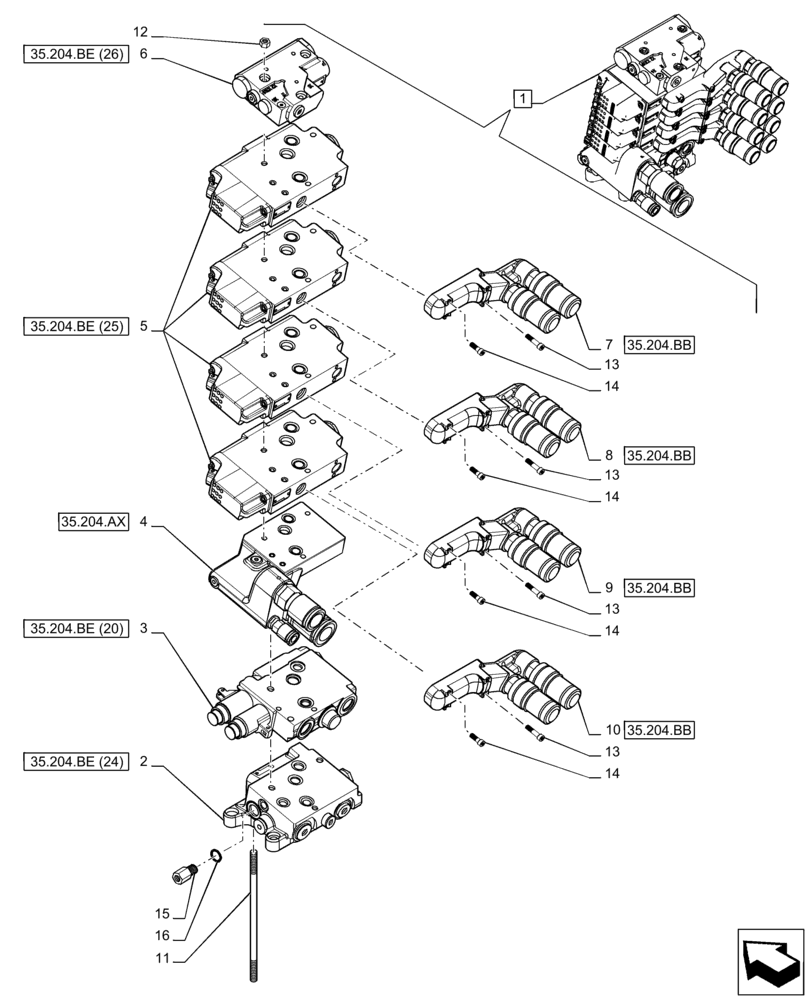

![Схема запчастей Case IH PUMA 150 CVT - (35.204.BQ[16]) - VAR - 758060 - 4 REMOTE CONTROL VALVE (EHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/caseih/5227853.png)
9
13
15
14
5
6
35.204.bb
35.204.bb
7
35.204.be (20)
13
1
12
35.204.bb
10
16
35.204.bb
35.204.be (24)
4
8
13
3
14
13
35.204.be (25)
2
14
11
35.204.be (26)
35.204.ax
14
1
84230146
CONTROL VALVE
ASSY, Incl 2 - 16
1шт.
2
84142195
HYD VALVE SECTION
1шт.
3
84175671
VALVE SECTION
1шт.
4
84146807
HYD VALVE SECTION
1шт.
5
84230181
HYD VALVE SECTION
4шт.
6
84230200
HYD VALVE SECTION
1шт.
7
87381965
QUICK MALE COUPLING
4 EHR
1шт.
8
87381964
QUICK MALE COUPLING
3 EHR
1шт.
9
87381963
QUICK MALE COUPLING
2 EHR
1шт.
10
87381958
QUICK MALE COUPLING
1 EHR
1шт.
11
84151304
THREADED TIE-ROD
M8
3шт.
12
5195169
NUT,M8
M8
3шт.
13
47129475
HEX SOC SCREW,M6 x 50mm
M6 x 50
8шт.
14
47129474
HEX SOC SCREW,M6 x 35mm
M6 x 35
8шт.
15
5191704
CHECK VALVE
1шт.
16
5191705
O-RING,9.4mm D x 2.1mm Thk
1шт.
