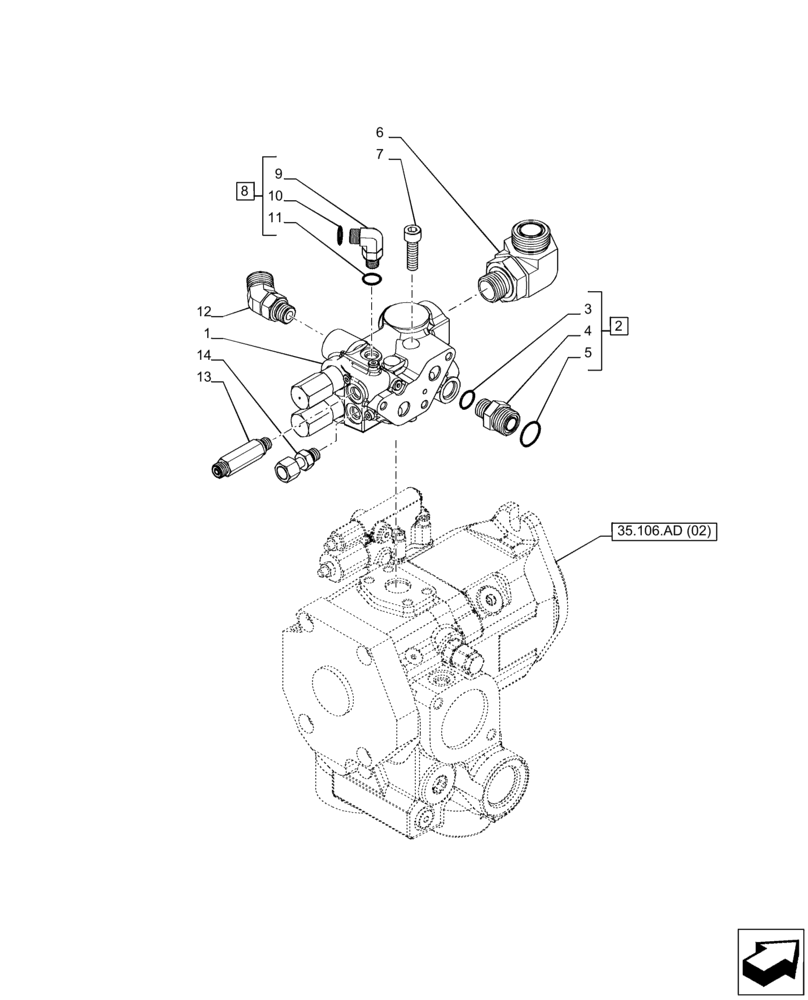

Запчасти Case IH PUMA 150 CVT (35.100.AZ[04]) - VAR - 758037, 758039, 758040, 758042, 758044 - PRIORITY VALVE, CVT (35) - HYDRAULIC SYSTEMS

1

84141056

CONTROL VALVE

1шт.

2

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

5

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

6

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

1шт.

7

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

8

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

10

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

12

84270256

FITTING

1шт.

13

84270265

FITTING,M12 x 1.5 x 9/16"-18

1шт.

14

84182082

HYD CONNECTOR,9/16"-18 x M12 x 1.5 ORB

1шт.
