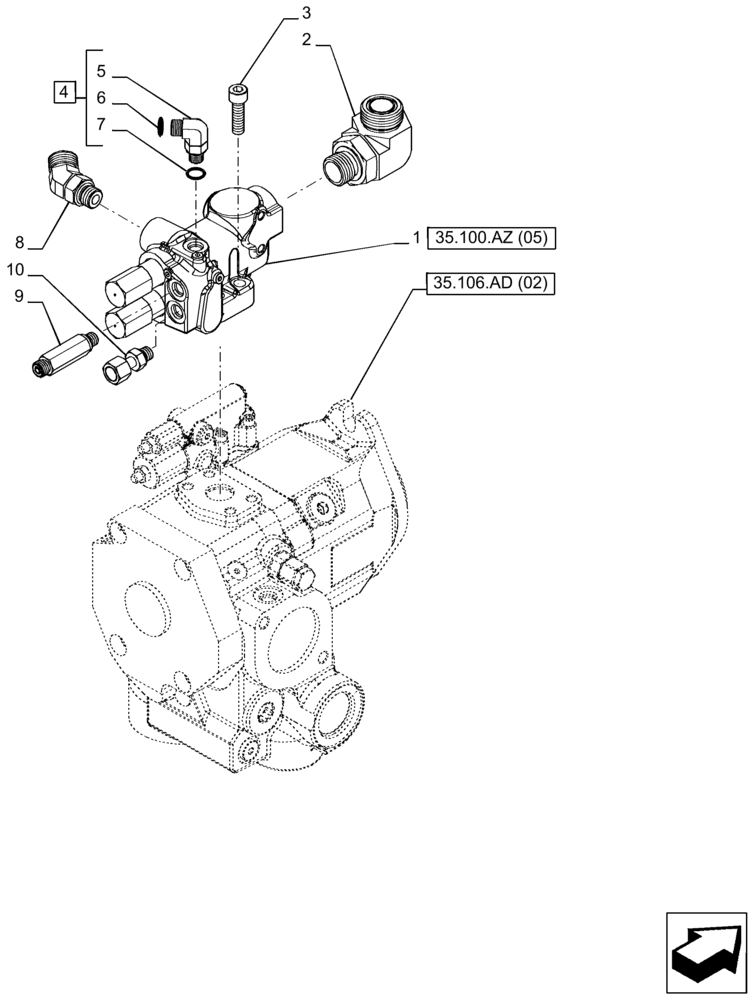

Запчасти Case IH PUMA 150 CVT (35.100.AZ[03]) - VAR - 391155, 758038, 758041, 758043 - PRIORITY VALVE, CVT (35) - HYDRAULIC SYSTEMS

1

84263753

HYDRAULIC VALVE

Priority

1шт.

2

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

1шт.

3

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

4

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Elbow, Incl in 4

1шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

7

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

8

84270256

FITTING

45

1шт.

9

84270265

FITTING,M12 x 1.5 x 9/16"-18

1шт.

10

84182082

HYD CONNECTOR,9/16"-18 x M12 x 1.5 ORB

1шт.
