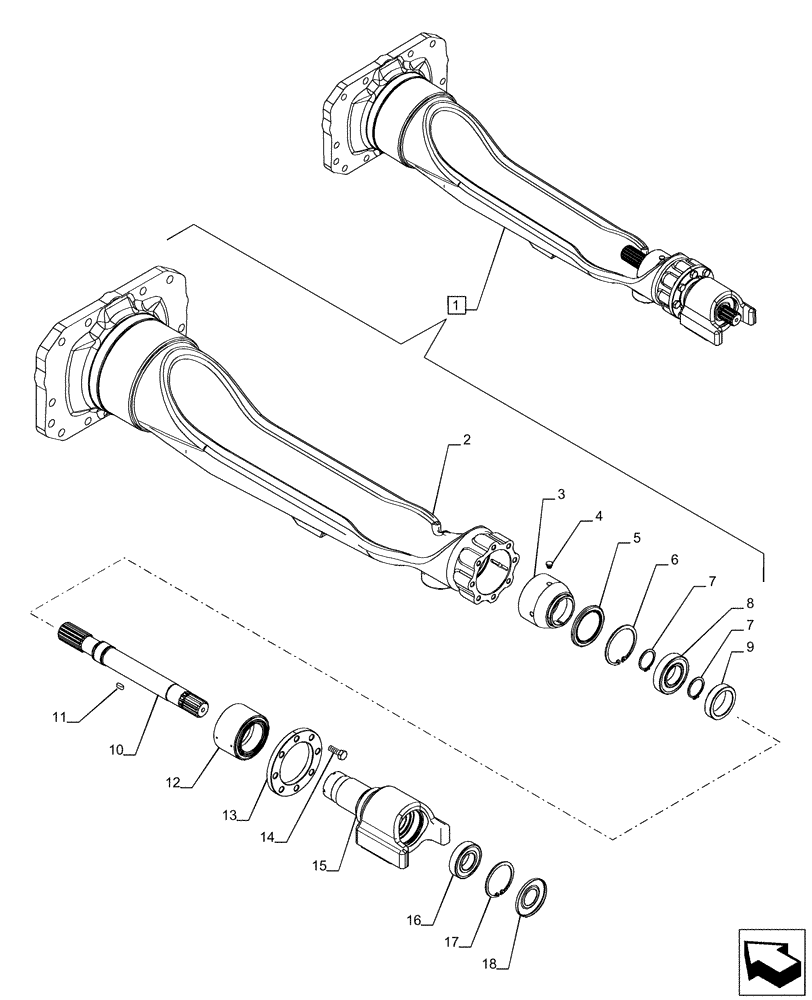

Запчасти Case IH PUMA 150 CVT (25.100.BL[02]) - VAR - 758045, 758046 - FRONT AXLE, SUSPENDED, ARM, COMPONENTS (25) - FRONT AXLE SYSTEM

1

87383925

ARM

ASSY, Incl 2 - 18

1шт.

2

87383924

ARM

1шт.

3

87601957

BEARING HOUSING,67.00mm x 96.00mm x 74.00mm

1шт.

4

83908579

PLUG,M7.62

4шт.

5

5198541

PLATE,62.2mm ID x 85mm OD x 1mm Thk

1шт.

6

11061976

SNAP RING,M80, Int

1шт.

7

11068876

SNAP RING,M40, Ext

2шт.

8

28996550

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

9

82037880

NUT,M50 x 2.00mm

1шт.

10

84479002

SHAFT

1шт.

11

14723110

KEY,6mm x 6mm x 16mm

1шт.

12

84263341

SPHERICAL BEARING,60mm ID x 95mm OD x 66mm W

1шт.

13

82037881

PLATE

1шт.

14

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

15

87618799

HOLDER

1шт.

16

28996540

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

17

11061576

SNAP RING,M72, Int

1шт.

18

5150371

DISC,35.2mm ID x 80mm OD x 6mm Thk

1шт.
