(90.150.02[01]) - FRONT CAB SUPPORTS

Запчасти Case IH PUMA 230 (90.150.02[01]) - FRONT CAB SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

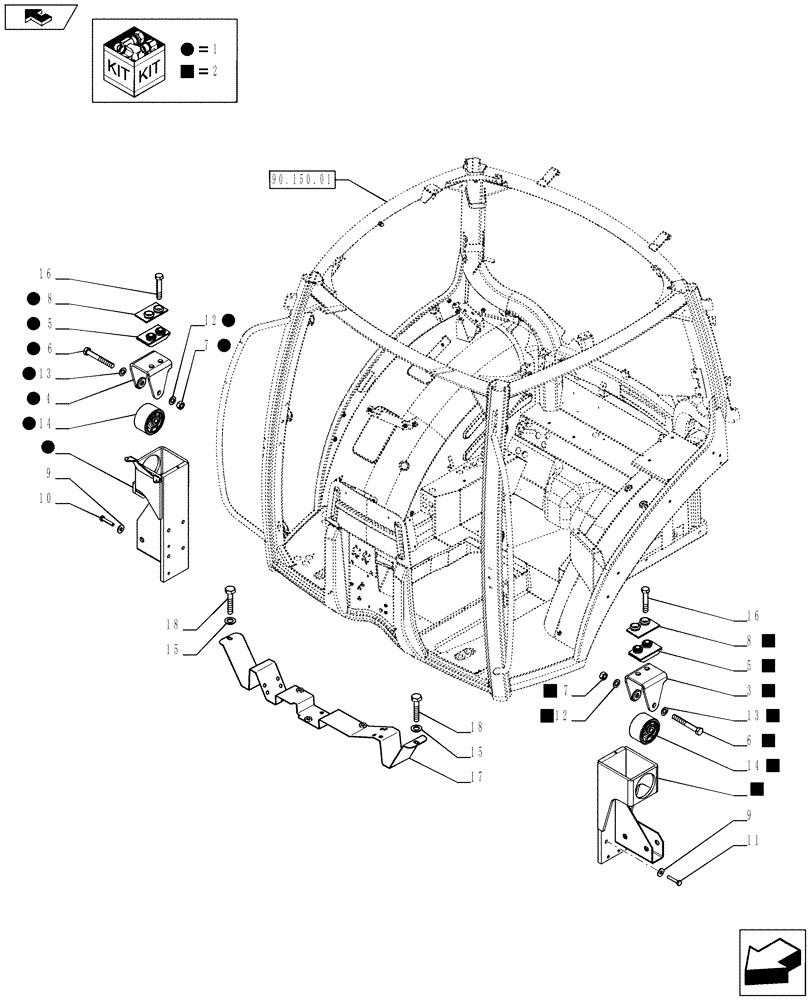

Схема запчастей Case IH PUMA 230 - (90.150.02[01]) - FRONT CAB SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
1
1
1
2
12
2
2
1
6
15
2
13
12
3
11
2
1
18
8
16
9
home
90.150.01
2
1
17
2
7
10
14
15
4
1
5
1
6
9
16
13
2
7
1
1
2
5
14
2
18
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84353500

SUPPORT

ASSY,RH, Contains Ref. 4-8,12-14

1шт.

2

84353505

SUPPORT

ASSY,LH, Contains Ref. 3,5-8,12-14

1шт.

3

84140750

YOKE

LH

1шт.

4

84140756

YOKE

RH

1шт.

5

84138674

PLATE

2шт.

6

384197

BOLT,Hex, M20 x 2.5 x 150mm, Cl 8.8

2шт.

7

9706694

NUT,Hex, M20, Cl 8

2шт.

8

84138656

RUBBER PAD

2шт.

9

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

8шт.

10

11360221

BOLT,Hex, M14 x 1.5 x 100, 8.8

4шт.

11

16214621

SCREW,Hex, M14 x 1.5 x 50mm, Cl 8.8

4шт.

12

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

13

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

2шт.

14

87396965

INSULATOR,100mm OD x 85.3mm L

2шт.

15

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

16

87737521

SCREW,Hex, M20 X 120, 8.8

4шт.

17

84337809

BRACKET

1шт.

18

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
