(90.120.0102[03]) - DELUXE HEATED SEMI-ACTIVE SUSPENSION - BREAKDOWN (VAR.728319-728679)

Запчасти Case IH PUMA 230 (90.120.0102[03]) - DELUXE HEATED SEMI-ACTIVE SUSPENSION - BREAKDOWN (VAR.728319-728679) (90) - PLATFORM, CAB, BODYWORK AND DECALS

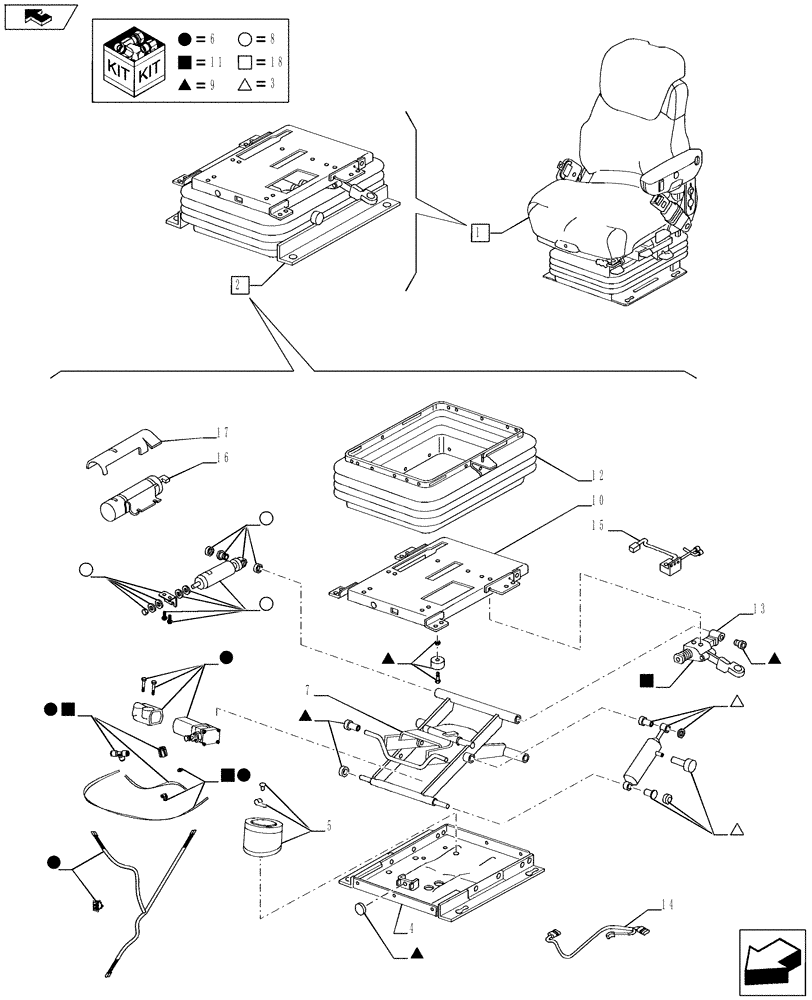

Схема запчастей Case IH PUMA 230 - (90.120.0102[03]) - DELUXE HEATED SEMI-ACTIVE SUSPENSION - BREAKDOWN (VAR.728319-728679) (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
13
4
8
9
9
9
15
6
9
14
11
6
3
2
16
6
home
17
3
8
6
11
8
8
6
11
11
6
18
11
3
12
9
9
5
3
7
10
18
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84169226

SEAT

ASSY, See Also Page 01,02

1шт.

With Red Leather Deluxe Seat with Belts, Heated Cushion and Semi Active Suspension, VAR.728319

1шт.

1

84169224

ASSY, See Also Page 01,02

1шт.

With Deluxe Seat with Belts, Heated Cushion and Semi Active Suspension, VAR.728679

1шт.

2

87529827

SUSPENSION

Suspension ASSY

1шт.

3

87529993

SUSPENSION

Suspension Shock Absorber

1шт.

With Deluxe Seat with Belts, Heated Cushion and Semi Active Suspension, VAR.728679

1шт.

4

87529826

REPAIR KIT

Lower Housing

1шт.

5

82020819

KIT

Air Spring

1шт.

6

87529848

KIT

Compressor W/Heating

1шт.

7

82020846

KIT

Suspension Scissors

1шт.

8

82020830

SERVICE KIT

Suspension Fore/Aft Damper

1шт.

9

82020845

SERVICE KIT

Bumper and Roller

1шт.

10

87583455

HOUSING

Upper Housing

1шт.

11

87529857

SEAT ACCESSORY

Air Line

1шт.

12

82020843

KIT

Suspension Boot

1шт.

13

82021020

SERVICE KIT

Fore/Aft Isolator

1шт.

14

87529793

HARNESS

1шт.

15

87529794

BOX

1шт.

16

87529821

AIR RESERVOIR

1шт.

17

87583456

COVER

1шт.

18

82020839

KIT

Knobs

1шт.
