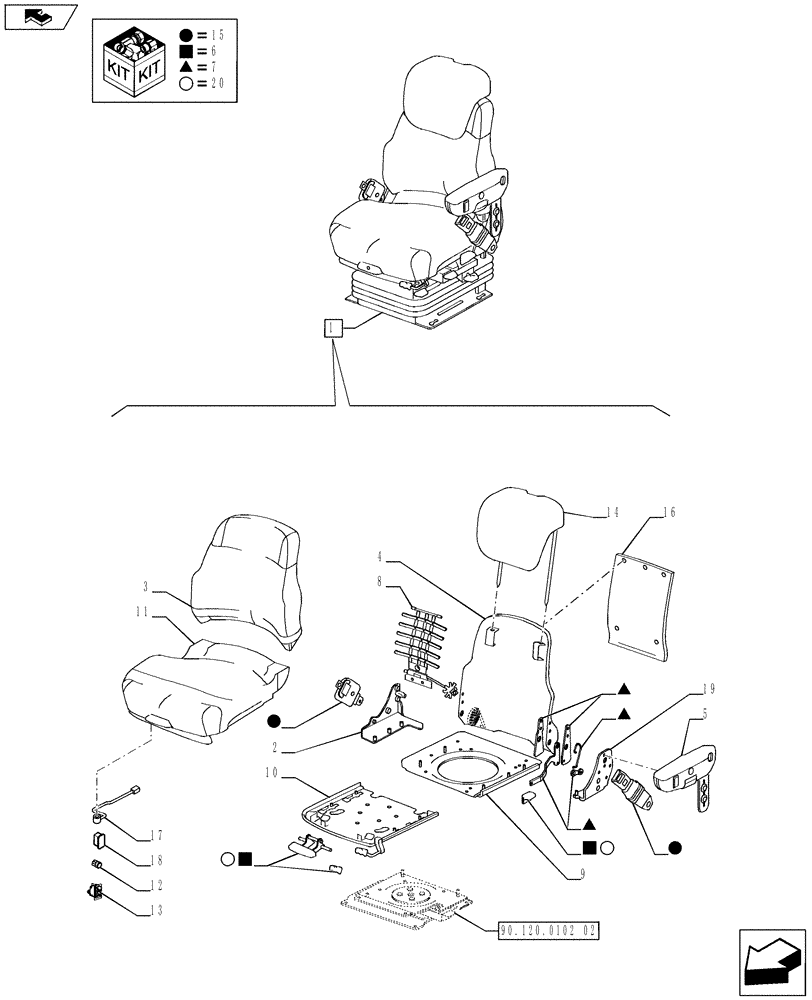

Запчасти Case IH PUMA 230 (90.120.0102[01]) - (VAR.728319-728679) DELUXE HEATED SEMI-ACTIVE SUSPENSION - BREAKDOWN (VAR.728319-728679) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87706661

SEAT

ASSY, See Also Page 02,03

1шт.

Red Leather Deluxe Seat with Seat Belt, Heated Cushion and Semi Active Suspension, VAR.728319

1шт.

1

87486992

SEAT

ASSY, See Also Page 02,03

1шт.

Deluxe Seat with Seat Belt, Heated Cushion and Semi Active Suspension, VAR.728679

1шт.

2

84155803

HOLDER

RH

1шт.

3

87308616

BACKREST

1шт.

Red Leather Deluxe Seat with Seat Belt, Heated Cushion and Semi Active Suspension, VAR.728319

1шт.

3

84155810

SEAT BACK

RH

1шт.

Deluxe Seat with Seat Belt, Heated Cushion and Semi Active Suspension, VAR.728679

1шт.

4

87529838

SEAT BACK

Back Pan

1шт.

5

87529843

ARMREST

LH

1шт.

6

87308611

SERVICE KIT

1шт.

7

82020808

KIT

Recliner

1шт.

8

87367816

KIT

Lumbar

1шт.

9

87529831

SEAT BACK

Seat Pan

1шт.

10

87529825

KIT

Cushion Extension

1шт.

11

87529835

SEAT CUSHION

1шт.

Red Leather Deluxe Seat with Seat Belt, Heated Cushion and Semi Active Suspension, VAR.728319

1шт.

11

84155807

SEAT CUSHION

1шт.

Deluxe Seat with Seat Belt, Heated Cushion and Semi Active Suspension, VAR.728679

1шт.

12

87308609

PREHEATING SWITCH

Heater

1шт.

13

87308605

SWITCH

Height Control

1шт.

14

84155812

SEAT HEADREST

Upper

1шт.

Includes two plastic tubes

1шт.

Red Leather Deluxe Seat with Seat Belt, Heated Cushion and Semi Active Suspension, VAR.728319

1шт.

14

84155811

SEAT HEADREST

Upper

1шт.

Deluxe Seat with Seat Belt, Heated Cushion and Semi Active Suspension, VAR.728679

1шт.

Includes two plastic tubes

1шт.

15

82020831

KIT

Seat Belt

1шт.

16

82030777

BRIEF CASE

1шт.

17

87529796

SWITCH

Operator Presence Switch

1шт.

18

87529797

SWITCH

Ride Firmness

1шт.

19

47127917

SERVICE KIT

LH

1шт.

20

82020839

KIT

Knobs

1шт.
