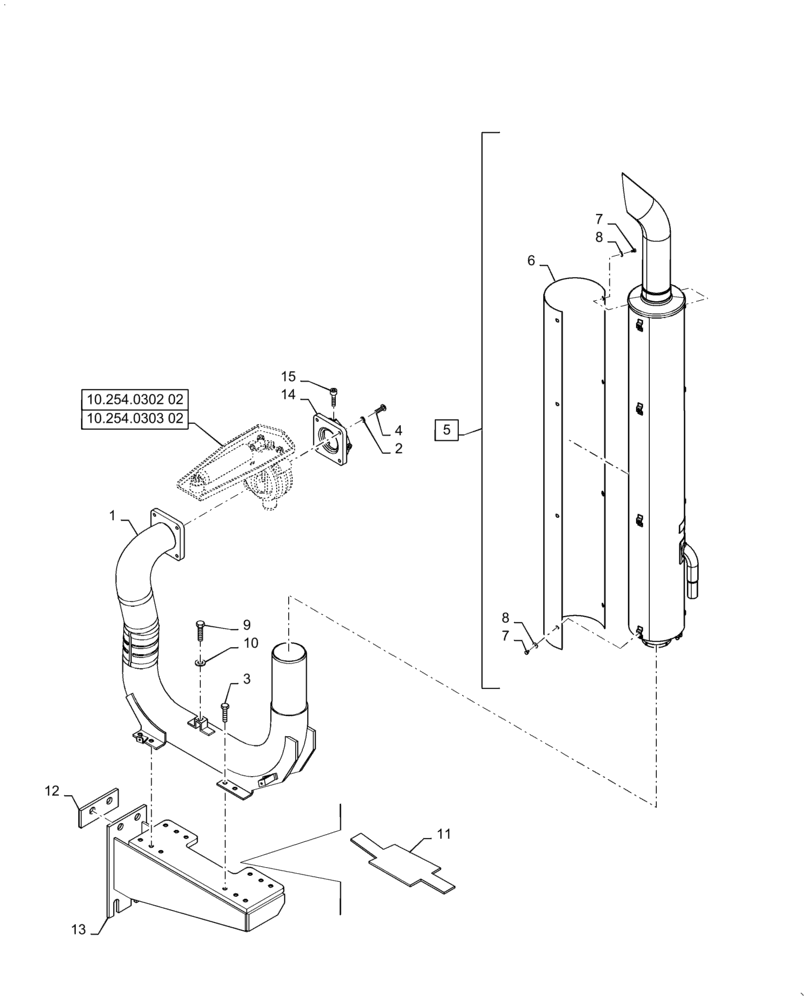

Запчасти Case IH PUMA 230 (10.254.04[01]) - EXHAUST BRAKE - EXHAUST SYSTEM AND SUPPORT (VAR.743040) (10) - ENGINE

1

87651066

EXHAUST SYSTEM PIPE

1шт.

2

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

3

14432334

HEX SOC SCREW,M10 x 1.5 x 22mm, Cl 10.9, Full Thd

8шт.

4

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

4шт.

5

84304605

MUFFLER

Incl 6 - 8

1шт.

6

47748017

HEAT SHIELD

1шт.

7

47747964

SCREW,M6 x 10mm

8шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

9

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

10

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

5шт.

11

87590157

DEFLECTOR

1шт.

12

87569642

PLATE

1шт.

13

87568617

SUPPORT

1шт.

14

87487450

ADAPTER

1шт.

15

84178070

SCREW

3шт.
