(90.120.0101[02]) - DELUXE AIR SEAT WITH SEAT BELT - BREAKDOWN

Запчасти Case IH PUMA 230 (90.120.0101[02]) - DELUXE AIR SEAT WITH SEAT BELT - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS

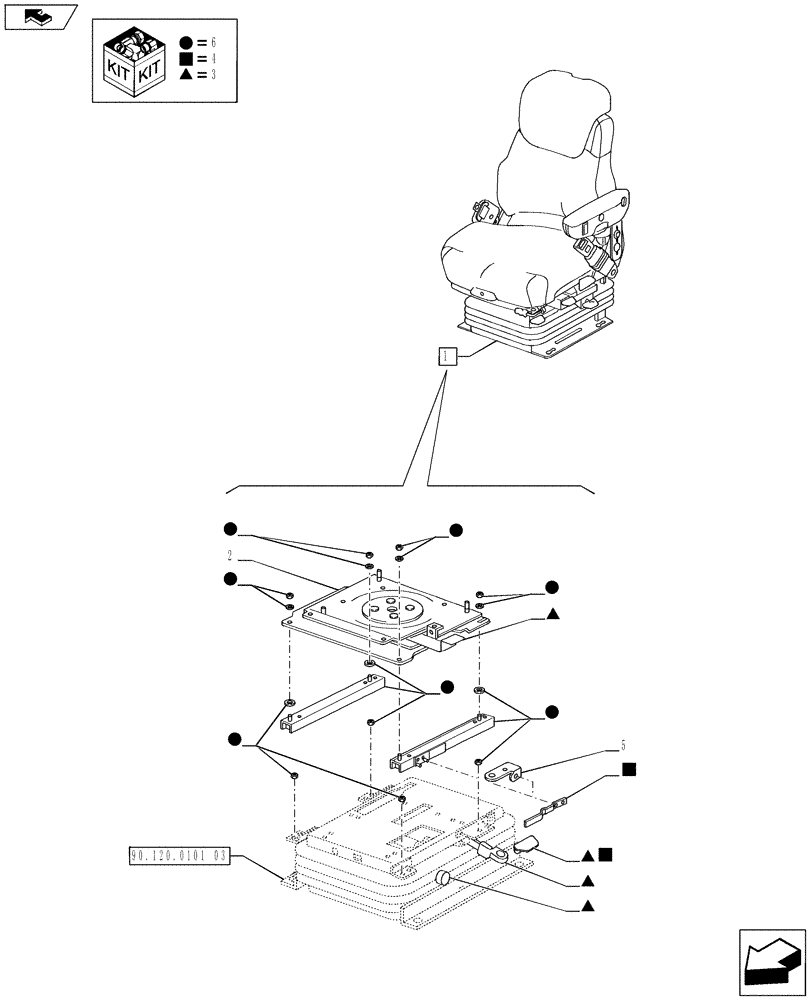

Схема запчастей Case IH PUMA 230 - (90.120.0101[02]) - DELUXE AIR SEAT WITH SEAT BELT - BREAKDOWN (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
3
5
3
6
6
6
3
6
2
4
6
6
90.120.0101 03
home
3
3
6
4
4
1
4
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84155767

SEAT

ASSY, See Also Page 01,03

1шт.

2

84155804

PIVOT PLATE

Swivel

1шт.

3

82020839

KIT

1шт.

4

82020809

SERVICE KIT

Slide Lever

1шт.

5

82020923

BRACKET

Lever Support

1шт.

6

82020814

SERVICE KIT

Slide

1шт.
