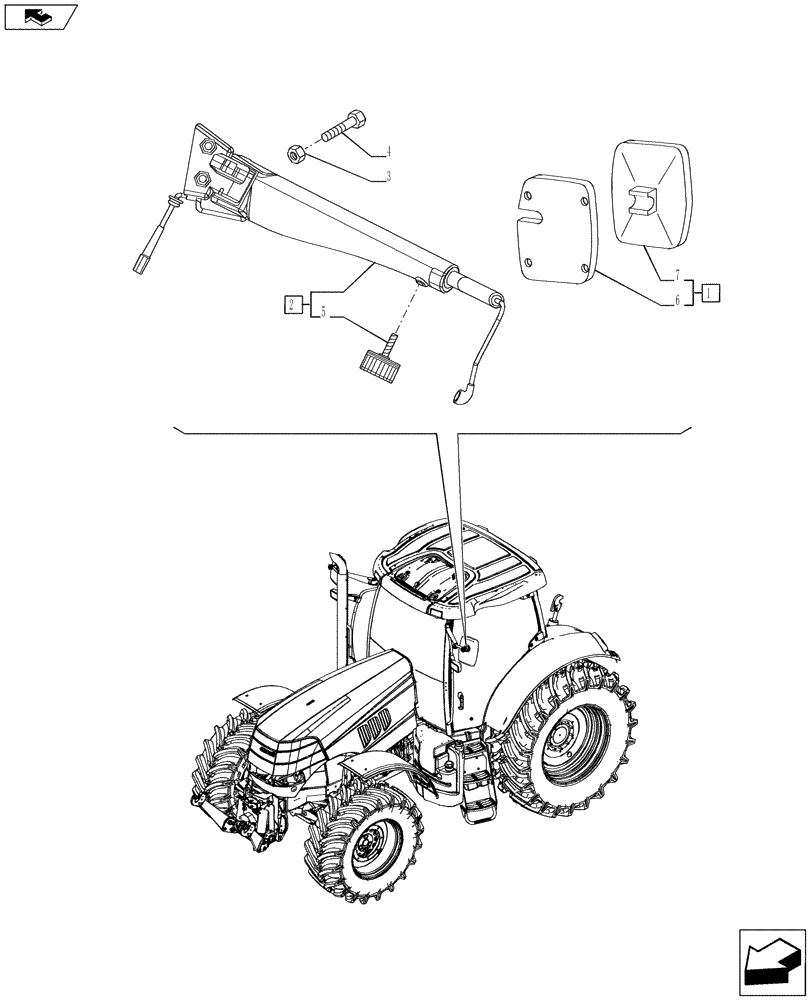

Запчасти Case IH PUMA 230 (90.118.02[01]) - DELUXE GPL CAB WITH HEATER AND AIR CONDITIONG - HEATED TELESCOPIC REAR VIEW MIRROR (VAR.728070-743228-743229-743227-743629) - C9027 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87316908

RH MIRROR,238mm x 328mm

RH, Contains Ref. 6, 7

1шт.

1

87316907

LH MIRROR

LH, Contains Ref. 6, 7

1шт.

2

87346576

ARM

RH, Contains Ref. 5

1шт.

2

87346605

ARM

LH, Contains Ref. 5

1шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

4

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

5

87365131

KNOB

2шт.

6

87578865

COVER

LH

1шт.

6

87531075

COVER

RH

1шт.

7

87706600

MIRROR

2шт.
