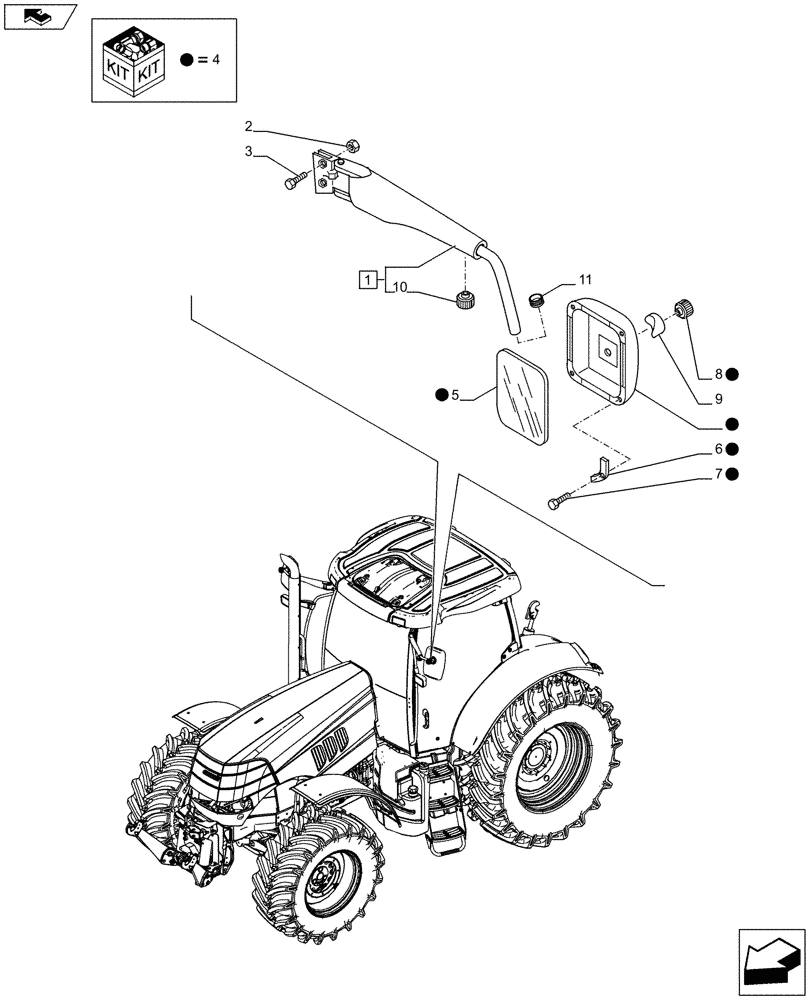

Запчасти Case IH PUMA 230 (90.118.0101) - SHATTERPROOF TELESCOPIC EXTERNAL REAR VIEW MIRROR - TELESCOPIC REAR VIEW MIRRORS (VAR.720879) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87314382

ARM

ASSY, RH, Contains Ref. 10

1шт.

1

87314381

MIRROR ARM

LH, Contains Ref. 10

1шт.

2

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

3

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

4

87339177

MIRROR ASSY.

2шт.

5

82035218

MIRROR,300mm x 200mm

1шт.

6

87531094

BRACKET

4шт.

7

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

8

82016257

KNOB

1шт.

9

82035908

WASHER

2шт.

10

87365131

KNOB

1шт.

11

82039492

GROMMET,6mm ID x 20mm OD, Rubber

2шт.
