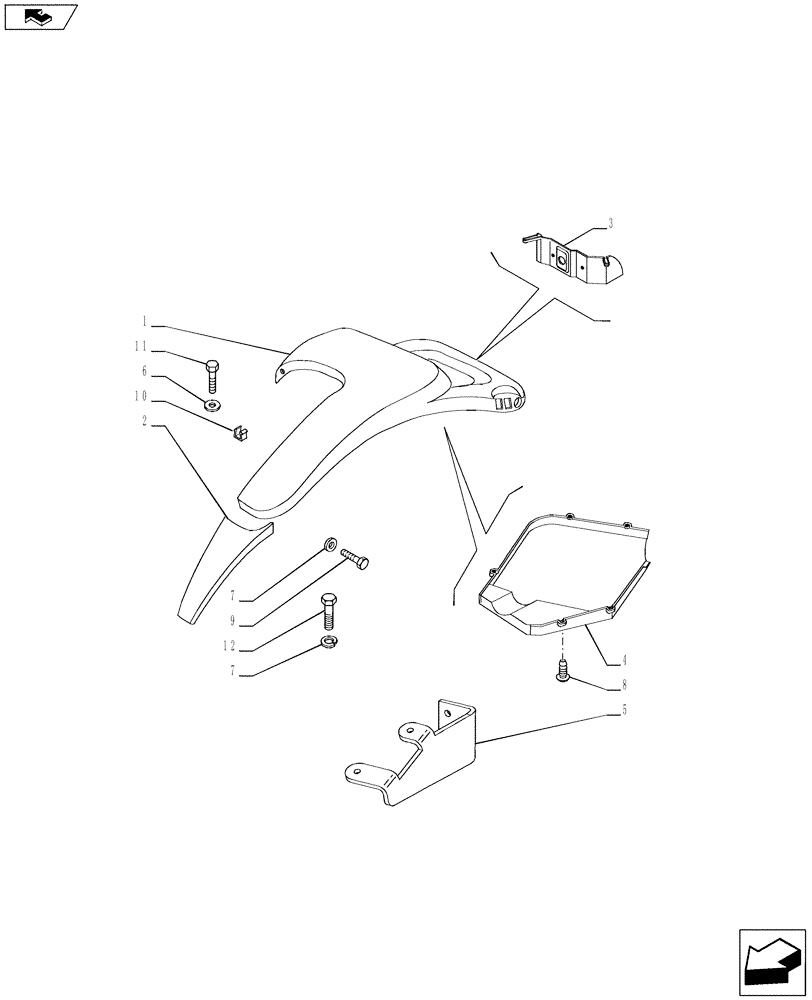

Запчасти Case IH PUMA 230 (90.116.0302) - EXTREMITY LIGHTS FOR NA OHIO - REAR FENDER (VAR.728667 / 743632) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87554853

REAR FENDER

LH

1шт.

1

87554854

REAR FENDER

RH

1шт.

2

82038501

REAR FENDER

LH

1шт.

2

82038500

REAR FENDER

RH

1шт.

3

82032773

COVER

LH

1шт.

3

82032772

COVER

RH

1шт.

4

87304236

SUPPORT

LH

1шт.

4

87304235

SUPPORT

RH

1шт.

5

82038220

BRACKET

LH

1шт.

5

82038222

BRACKET

RH

1шт.

6

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

M8 x 25 x 4

2шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

18шт.

8

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

50 x 10

20шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

14шт.

10

82010838

SPRING CLIP,0.5mm Thk

6шт.

11

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

12

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.
