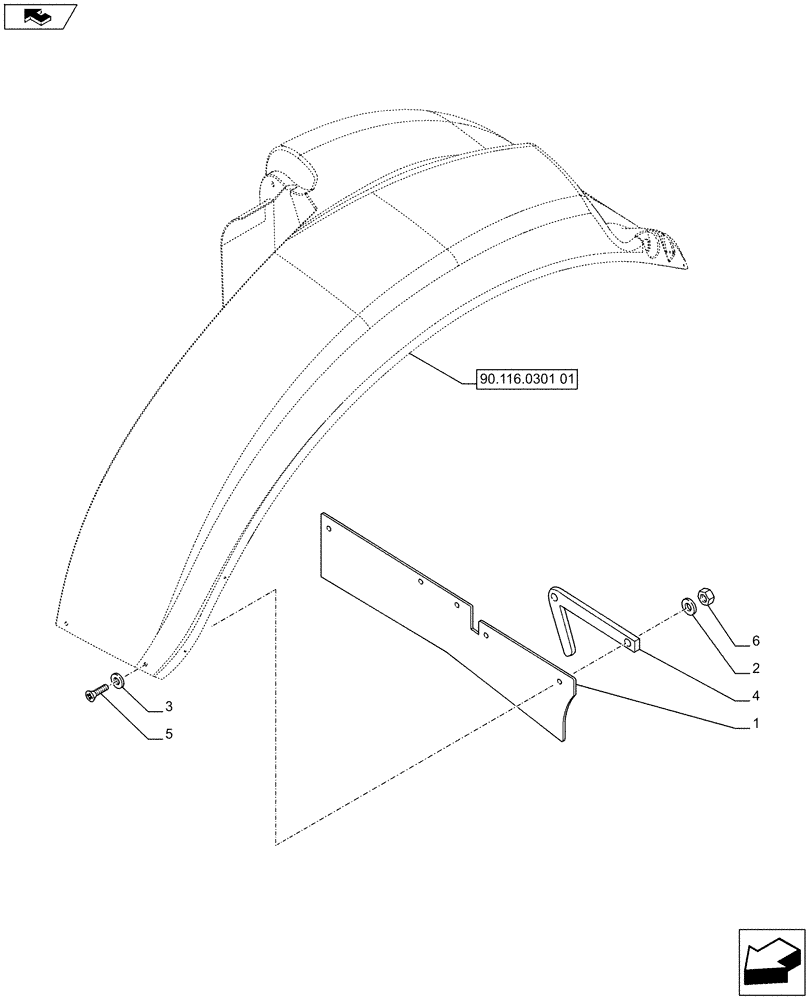

Запчасти Case IH PUMA 230 (90.116.0301[02]) - WIDE REAR FENDERS - MUDGUARD (VAR.728292) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87705290

MUDFLAP

2шт.

2

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

6шт.

3

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

4

87705291

SUPPORT

2шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

5

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

4шт.

6

12574211

NUT,M6 x 1, Cl 8

4шт.
