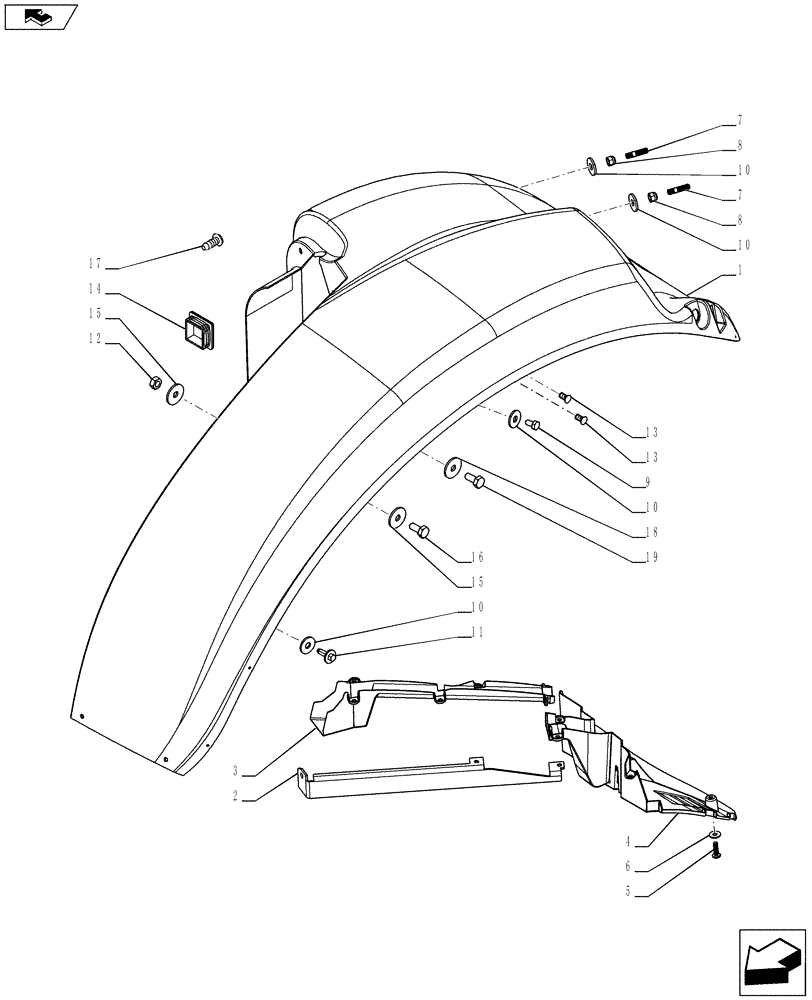

Запчасти Case IH PUMA 230 (90.116.0301[01]) - WIDE REAR FENDERS - FENDERS AND SUPPORTS (VAR.728292) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87554860

REAR FENDER

LH

1шт.

1

87554861

REAR FENDER

RH

1шт.

2

87389465

BRACKET

LH

1шт.

2

87389466

BRACKET

RH

1шт.

3

84537442

COVER

LH

1шт.

3

84537443

COVER

RH

1шт.

4

87383820

COVER

LH

1шт.

4

87383821

COVER

RH

1шт.

5

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

18шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

18шт.

7

13517021

STUD,M8 x 12mm x 25mm, Cl 8.8

2шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

6шт.

10

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

6шт.

11

83992627

CAPTIVE WASHER SCREW,Hex, M8 x 1.25 x 25mm, Pilot

2шт.

12

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

13

81870039

FASTENER,M8 x 1.5 x 22mm

4шт.

14

82033880

PLUG,70mm ID

2шт.

15

12644301

WASHER,M10 x 35 x 3

4шт.

16

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

17

83908579

PLUG,M7.62

1шт.

18

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

19

81872099

SCREW,Hex, M8 x 1.25 x 16mm, Cl 8.8

4шт.
