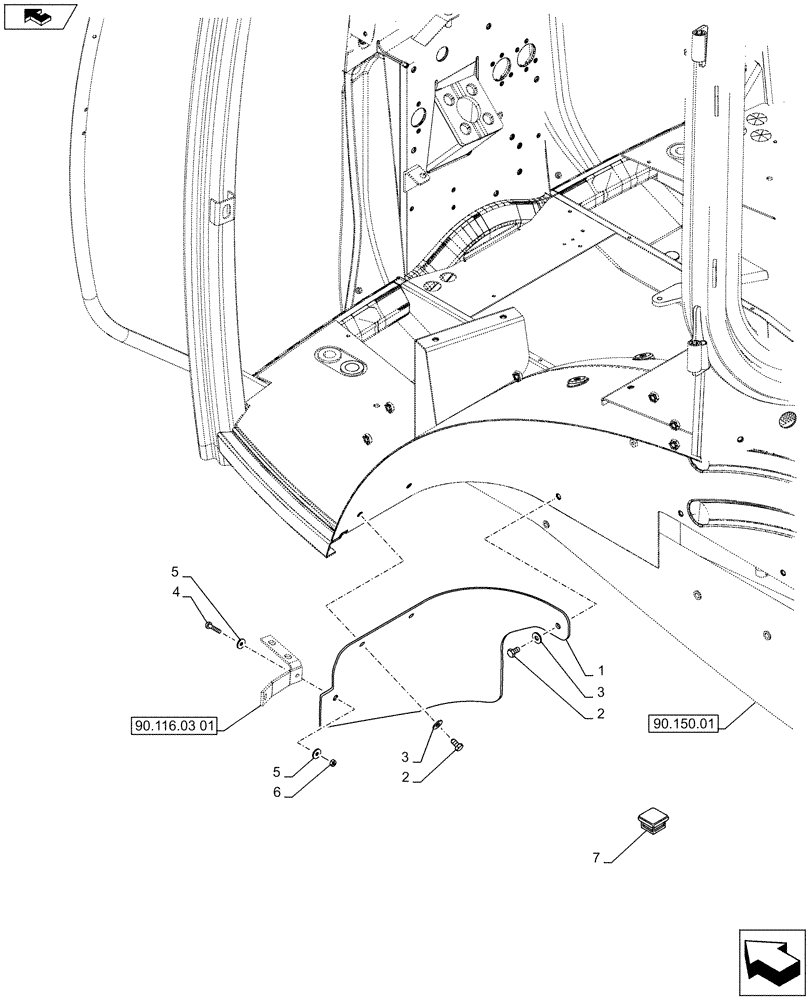

Запчасти Case IH PUMA 230 (90.116.03[02]) - REAR FENDER - MUDGUARD, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82037004

MUDFLAP

LH

1шт.

2

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

3

12647104

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

4

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

1шт.

5

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

6

15896211

NUT,M6, Cl 8

1шт.

7

82033880

PLUG,70mm ID

1шт.
