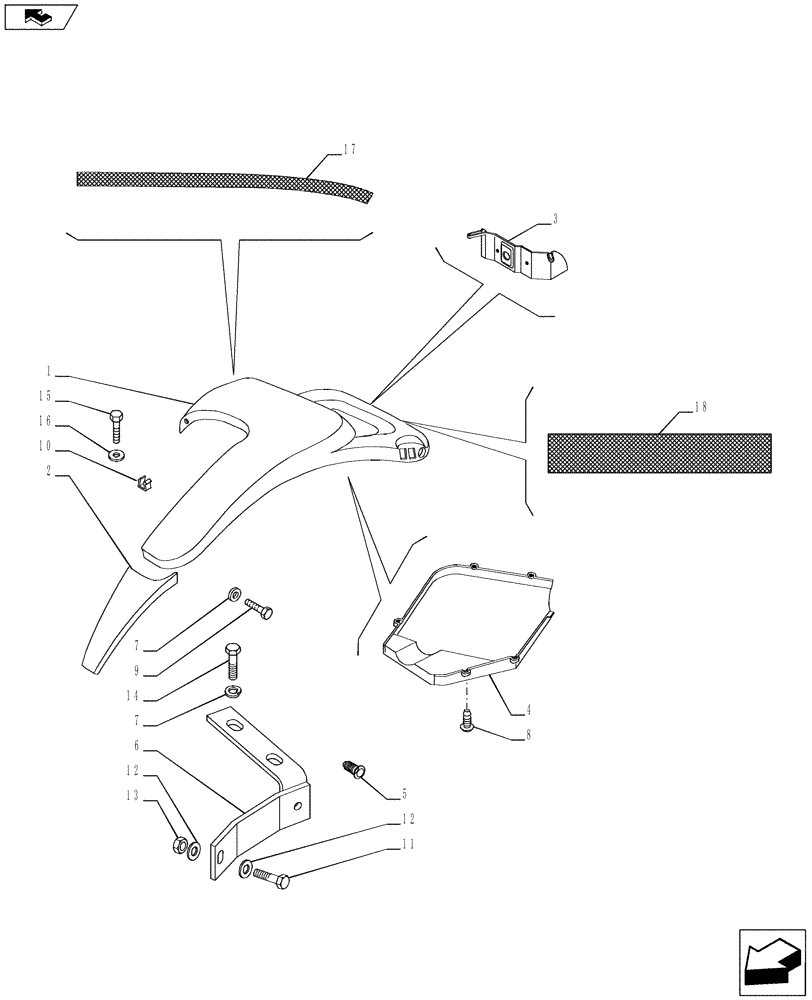

Запчасти Case IH PUMA 230 (90.116.03[01]) - REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87554853

REAR FENDER

LH

1шт.

1

87554854

REAR FENDER

RH

1шт.

1

87568056

REAR FENDER

LH, Black

1шт.

1

87568057

REAR FENDER

RH, Black

1шт.

2

82038501

REAR FENDER

LH

1шт.

2

82038500

REAR FENDER

RH

1шт.

3

82032773

COVER

LH

1шт.

3

82032772

COVER

RH

1шт.

4

87304236

SUPPORT

LH

1шт.

4

87304235

SUPPORT

RH

1шт.

5

81870039

FASTENER,M8 x 1.5 x 22mm

4шт.

6

82037053

SUPPORT

LH

1шт.

6

82037051

SUPPORT

RH

1шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

18шт.

8

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

20шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

12шт.

10

82010838

SPRING CLIP,0.5mm Thk

6шт.

11

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

2шт.

12

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

13

15896211

NUT,M6, Cl 8

2шт.

14

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

15

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

16

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

2шт.

17

87529852

DECAL

LH

1шт.

Rear Reflectors for Wide Fenders, NAR, VAR.743094 (Commercial Feature 743637), Basildon Production only

1шт.

17

87529853

DECAL

RH

1шт.

Rear Reflectors for Wide Fenders, NAR, VAR.743094 (Commercial Feature 743637), Basildon Production only

1шт.

18

84249298

DECAL

2шт.

Rear Reflectors for Standard Narrow Fenders, NAR, VAR.743093 (Commercial Feature 743637) - VAR.744457-744458 (Commercial Feature 743100), Basildon Production only

1шт.
