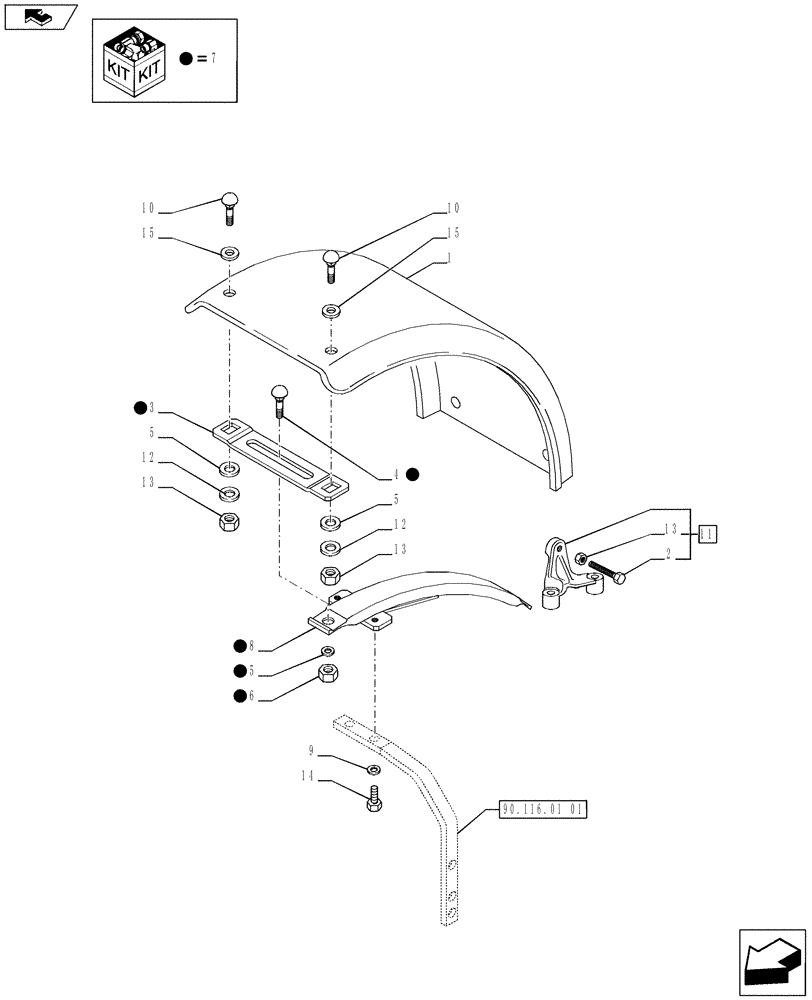

Запчасти Case IH PUMA 230 (90.116.01[02]) - DYNAMIC FRONT FENDERS - FENDERS AND BRACKETS (VAR.720497-728575) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87579461

MUD DEFLECTOR

620MM

2шт.

Dynamic front Fenders (Width 620MM), VAR.720497

1шт.

1

87579460

MUD DEFLECTOR

480MM

2шт.

Dynamic front Fenders (NAR, Width 480MM), VAR.728575

1шт.

2

15215021

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

M10 x 708.8

1шт.

3

82021040

SUPPORT

2шт.

4

82021059

BOLT,Hex, M10 x 1.25 x 31mm

M10 x 1.25 x 25

2шт.

5

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

10шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

2шт.

7

87745844

SUPPORT

ASSY

2шт.

8

87747746

SUPPORT ASSY.

1шт.

9

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

10

13183201

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 4.8

M10 x 30

8шт.

11

87475464

STOP

Contains Ref. 2,13

1шт.

11

87475467

STOP

Contains Ref. 2,13

1шт.

12

11198574

BELLEVILLE WASHER,Belleville, M10.5

8шт.

13

11701711

NUT,Hex, M10, Cl 8, ZND

M10

9шт.

14

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

15

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

7/16 x 1.62 x 10

8шт.
