(90.115.0101) - ELECTRICAL ADJUSTMENT OF ARMREST - COVERS AND SUPPORT (VAR.743883)

Запчасти Case IH PUMA 230 (90.115.0101) - ELECTRICAL ADJUSTMENT OF ARMREST - COVERS AND SUPPORT (VAR.743883) (90) - PLATFORM, CAB, BODYWORK AND DECALS

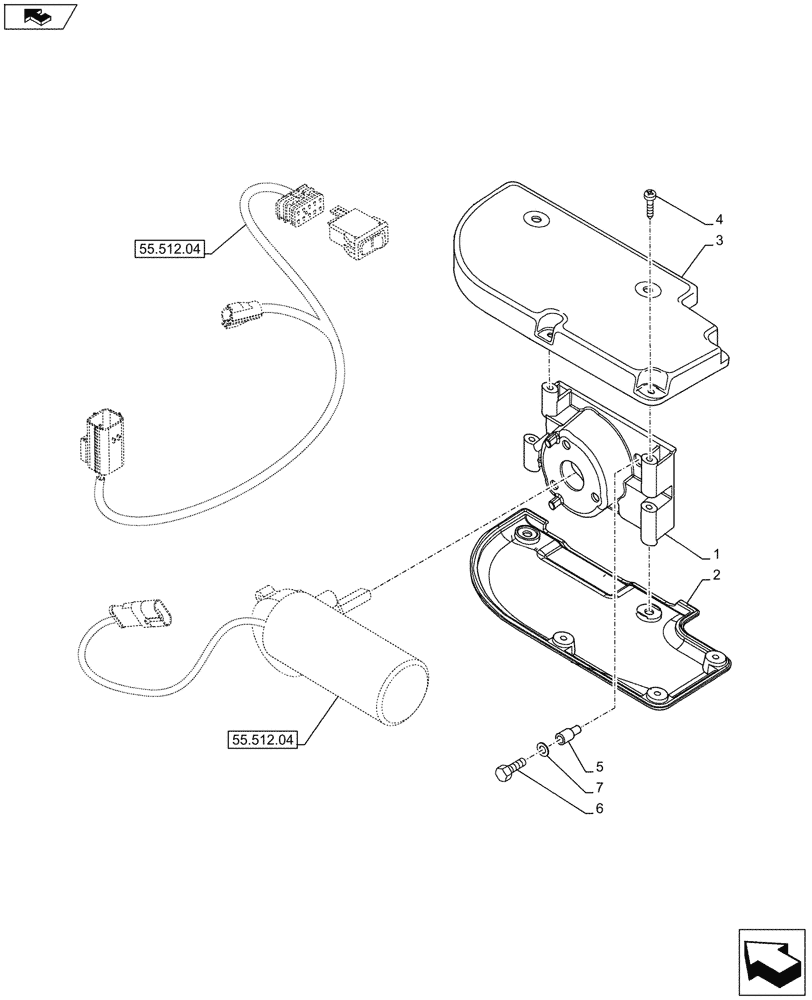

Схема запчастей Case IH PUMA 230 - (90.115.0101) - ELECTRICAL ADJUSTMENT OF ARMREST - COVERS AND SUPPORT (VAR.743883) (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.512.04
1
6
2
3
5
4
7
home
55.512.04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84201758

HOLDER

1шт.

2

84201783

SHELL

1шт.

3

84201762

SHELL

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

7шт.

5

15624411

RIVET,Flat, M6 OD x 16mm L

2шт.

6

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

2шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.
