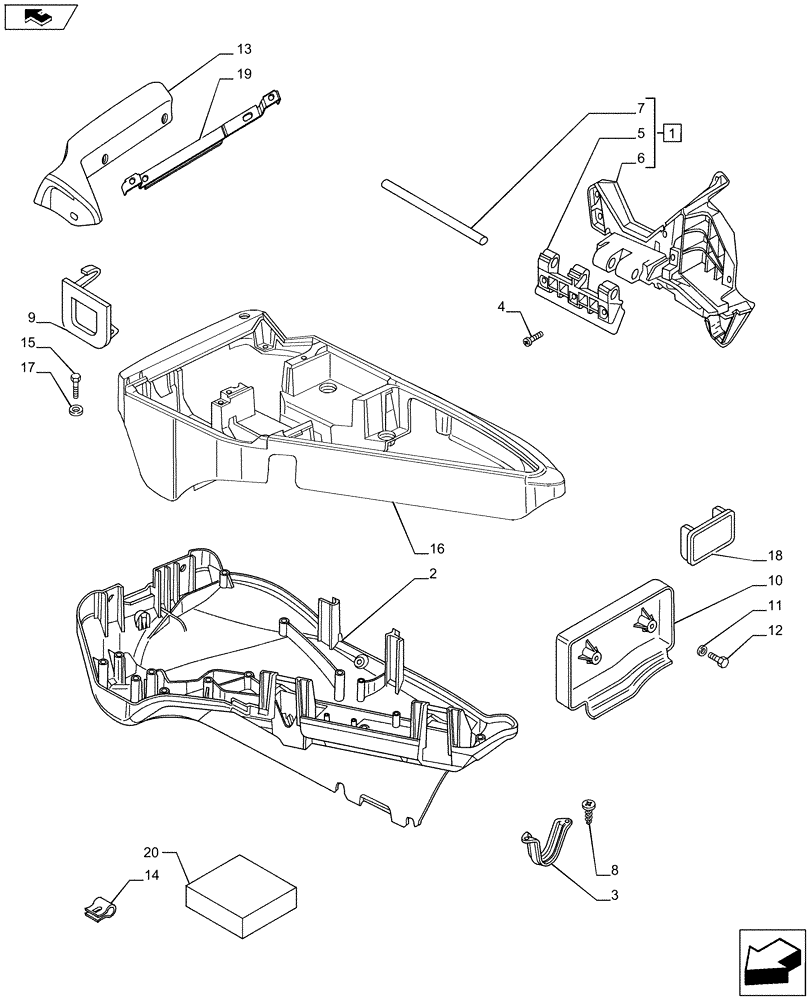

Запчасти Case IH PUMA 230 (90.115.01[01]) - ARMREST CONTROL UNIT - COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84204558

HINGE

ASSY, Contains Ref. 5-7

1шт.

2

87485760

HALF-SHELL

1шт.

3

87579853

RETAINER,14.9mm W x 56.7mm L

1шт.

4

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

1шт.

5

87487262

HINGE

1шт.

6

84153062

HINGE

1шт.

7

84147684

PIN,10mm OD x 144mm L

1шт.

8

15902607

SELF-TAP SCREW,Cross Pan Hd, M3.50 x 1.3 x 9.50mm

2шт.

9

84150714

BEZEL

SHELL

1шт.

10

87493860

PANEL

1шт.

Less Virtual Terminal

1шт.

11

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

1шт.

Less Virtual Terminal

1шт.

12

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

1шт.

13

84202333

SUPPORT

1шт.

14

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

NUT

1шт.

15

82016959

SCREW,M3.5 x 12mm

1шт.

16

84150708

SHELL

1шт.

17

14498801

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

18

82022763

PLUG

1шт.

19

84226106

BRACKET

1шт.

20

84210984

BLOCK

1шт.
