(90.108.03) - ARMREST CONTROL UNIT - DECALS

Запчасти Case IH PUMA 230 (90.108.03) - ARMREST CONTROL UNIT - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

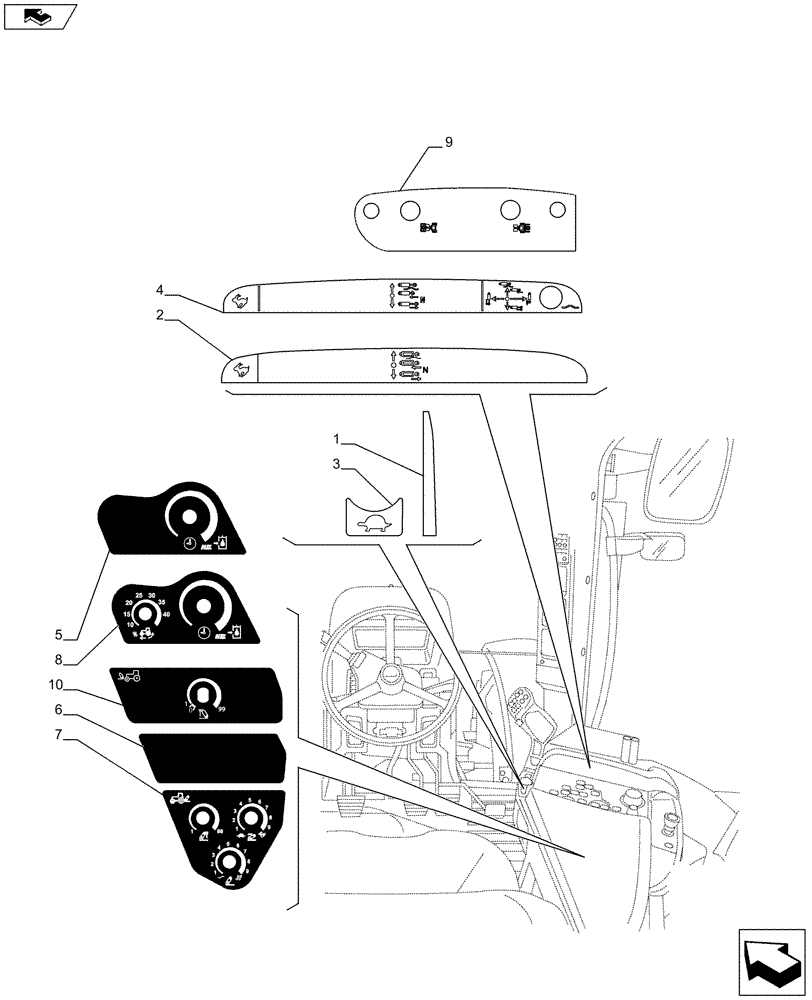

Схема запчастей Case IH PUMA 230 - (90.108.03) - ARMREST CONTROL UNIT - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
9
2
8
10
7
4
5
6
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84165457

DECAL

For Throttle

1шт.

2

84126449

DECAL

Less Joystick

1шт.

3

84145170

DECAL

For Snail

1шт.

4

84126448

DECAL

1шт.

Electronic Joystick with Proportional Control of 3rd Valve, Var.743121

1шт.

Electronic Joystick with 3 Bottons, Var.743048

1шт.

5

84217911

DECAL

1шт.

6

84185497

DECAL

1шт.

7

84217912

DECAL

1шт.

8

84217909

DECAL

1шт.

Radar (for UK), Var.720749

1шт.

Radar (for Japan), Var.720743

1шт.

Radar (Except for UK, Japan, NAR), Var.720753

1шт.

9

87725492

DECAL

PTO Front Rear

1шт.

Front HPL with PTO, Var.743484-743486 (Commercial Feature 743666-743667-743765-743837-743838)

1шт.

10

84239344

DECAL

Front EDC-HPL

1шт.

Front HPL, Var.743483-743484-743485-743486 (Commercial Feature 743666-743667-743765-743837-743838)

1шт.
