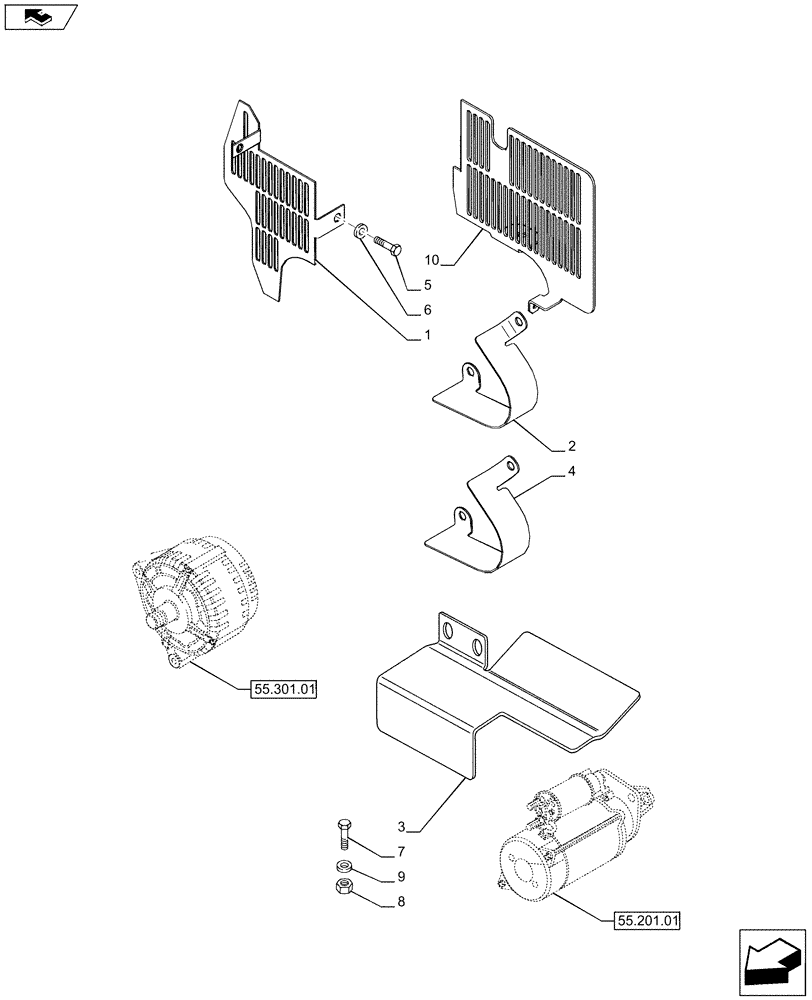

Запчасти Case IH PUMA 230 (90.102.0102) - 4WD AXLES W/ACTIVE SUSPENSION - ENGINE GUARDS (VAR.728212-720463) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87365151

GUARD

Engine

1шт.

2

87632719

GUARD

Alternator

1шт.

3

87590024

SHIELD

1шт.

4

84357190

GUARD

1шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

6

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

8

15896211

NUT,M6, Cl 8

2шт.

9

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

1шт.

10

84177622

GUARD

1шт.
