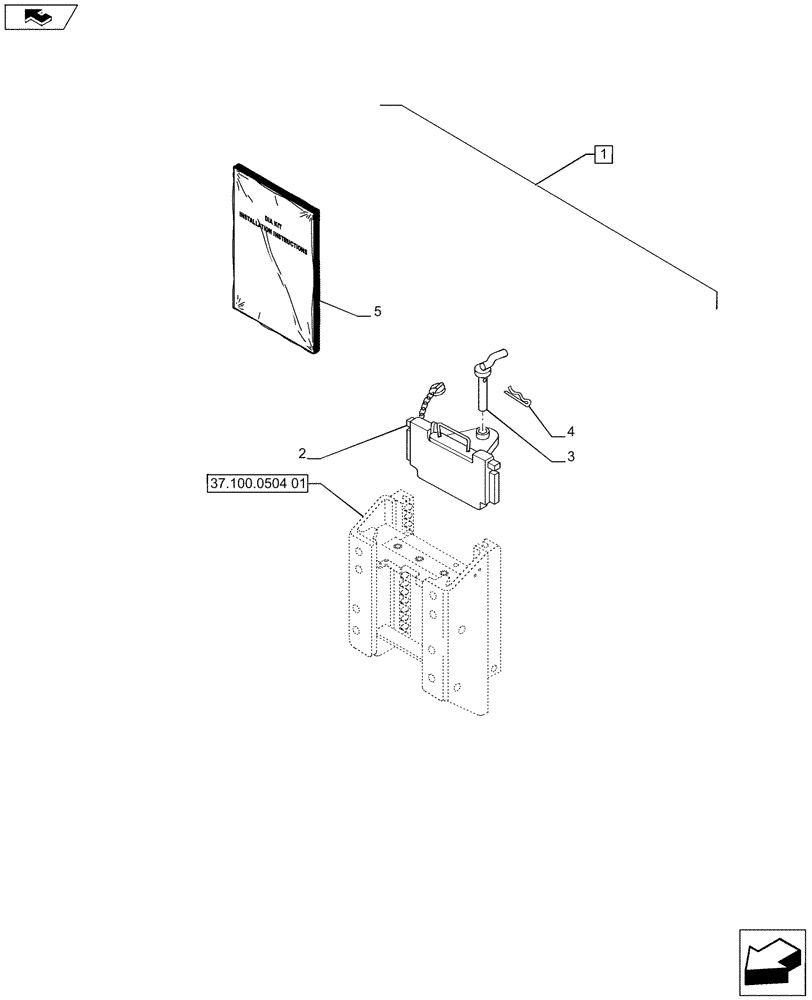

Запчасти Case IH PUMA 230 (88.037.17) - DIA KIT - SLIDER TOW HOOK WITH FIXED C TYPE COUPLING (88) - ACCESSORIES

1

719932014

DIA KIT, TRACTOR

Hook Cat. C for Slider Type Trailer Hitch, Contains Ref. 2-4 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

5199458

TOW HOOK

1шт.

3

82016898

HITCH PIN

1шт.

4

82000094

SPRING,40mm OD x 142mm L

1шт.

5

84142248

INSTRUCTION

1шт.
