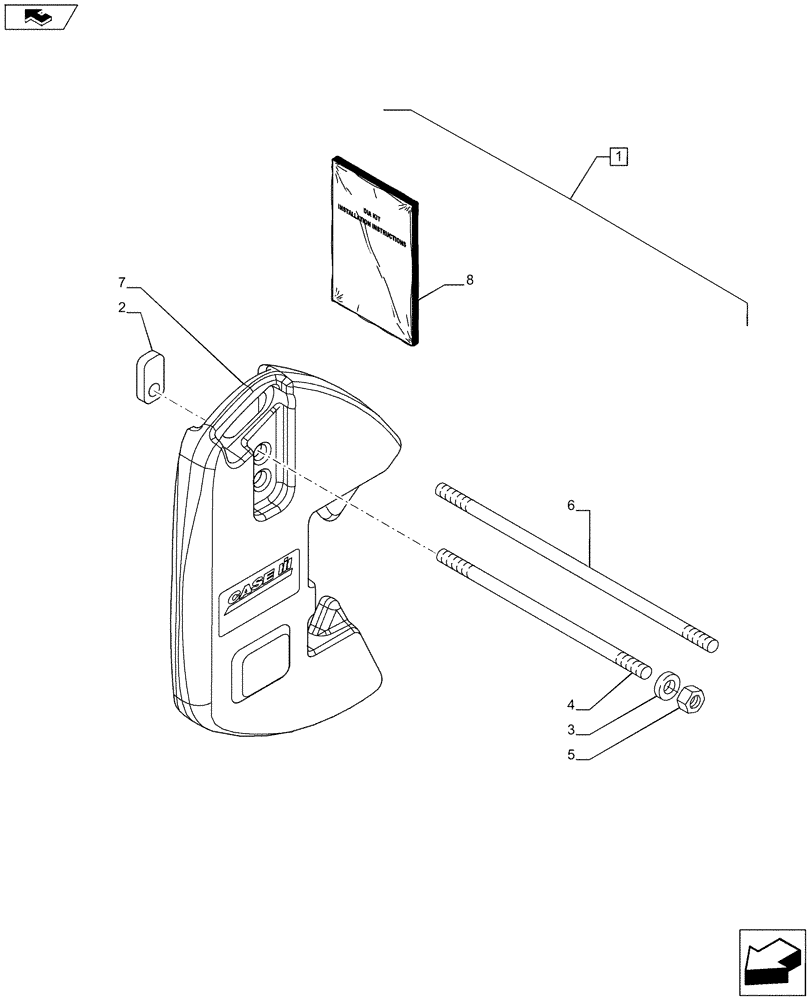

Запчасти Case IH PUMA 230 (88.037.10) - DIA KIT - FRONT WEIGHTS (88) - ACCESSORIES

1

719065064

DIA KIT, TRACTOR

Weights and Hardware for All Weight Combinations, Contains Ref. 2-7 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

44995007

CLAMP,Grey

PLATE

1шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

2шт.

4

82028018

ROD,M16 x 2 x 500.00mm, ZND

M 16 x 500

1шт.

5

392530

NUT,M16, Cl 10

3шт.

6

44995059

ROD,M16 x 2 x 950.00mm, ZND

M 16 x 950

1шт.

7

405846A3

WEIGHT

45 kg each

8шт.

8

84144031

INSTRUCTION

1шт.
