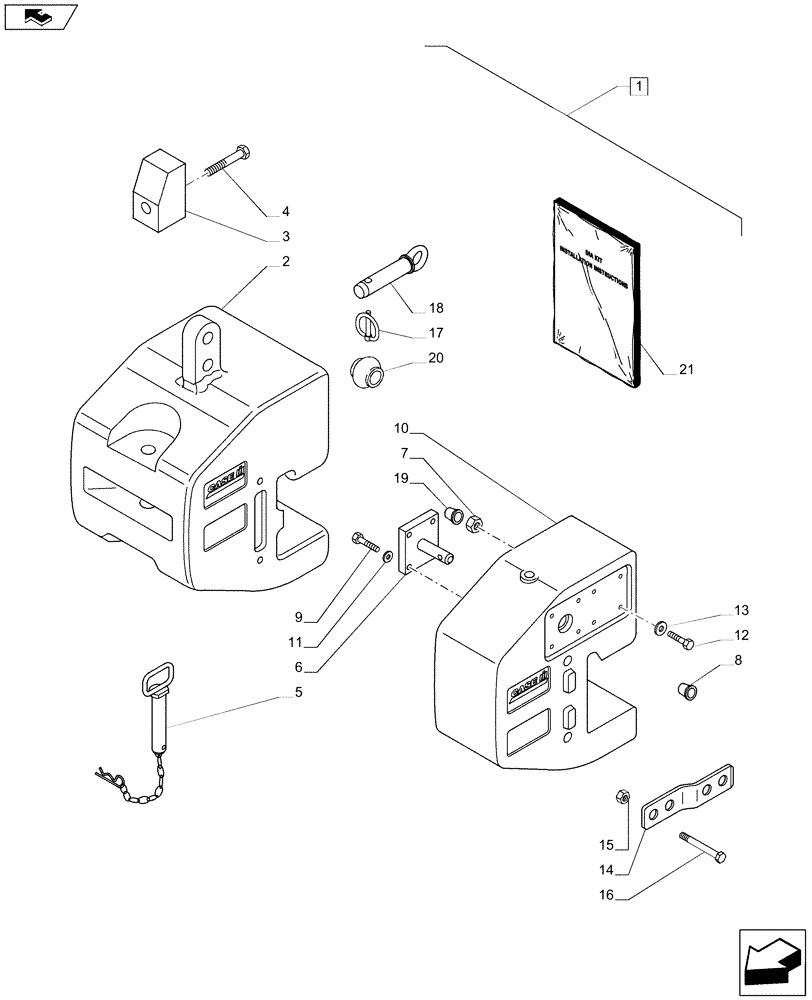

Запчасти Case IH PUMA 230 (88.037.03[01]) - DIA KIT - FRONT WEIGHTS - C7196 (88) - ACCESSORIES

1

710061034

DIA KIT, TRACTOR

1000 kg 3 Section Weight with Tow Hook, Contains Ref. 2-20 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87376053

WEIGHT

500 kg

1шт.

3

87376911

CLAMP,0.932 Kg

2шт.

4

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

5

44995060

CLEVIS PIN,31mm OD x 315mm L

1шт.

6

87301897

HEADED PIN,28mm OD x 120mm L

2шт.

7

12163511

NUT,M20, Cl 8

4шт.

8

85700893

COVER

8шт.

9

11113021

BOLT,Hex, M12 x 45mm, Cl 8.8

8шт.

10

87376051

WEIGHT

250 kg

2шт.

11

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

8шт.

12

87377164

STUD,M20 x 2.5 x 270.00mm, Cl 8.8, ZND

4шт.

13

14497101

WASHER,M20 x 37 x 3

4шт.

14

84241345

BRACKET,335mm L x 80mm W x 10mm Thk

2шт.

15

325290

NUT,M30, Cl 8

2шт.

16

86980492

BOLT,Hex, M30 x 3.5 x 110mm, Cl 10.9

2шт.

17

5166585

LOCK PIN,11mm OD

1шт.

18

822483

PIN,25.5mm OD x 137mm L

1шт.

19

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

2шт.

20

5172480

BALL,25.4mm ID x 50mm OD

1шт.

21

84263356

INSTRUCTION

1шт.
