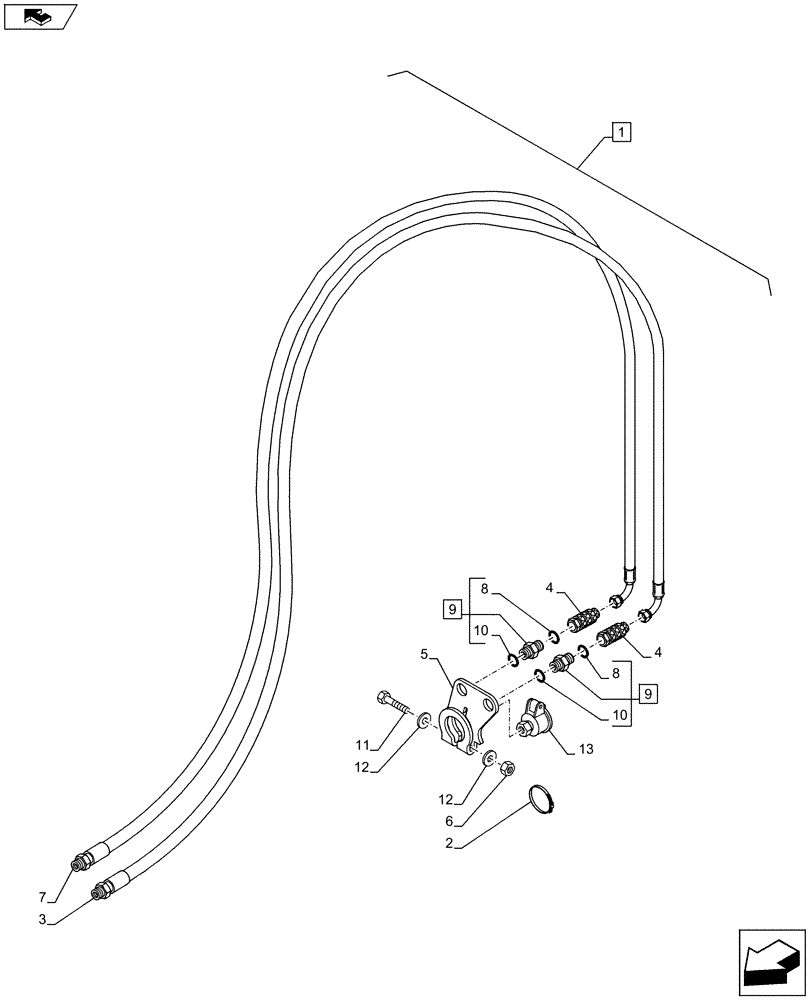

Запчасти Case IH PUMA 230 (88.035.11[03]) - DIA KIT - FRONT COUPLER FOR ATT DEVICE FRONT HYD - PIPES AND BRACKETS (88) - ACCESSORIES

1

718065024

DIA KIT, TRACTOR

Front Coupler for ATT Device Front HYD, Contains Ref 2-13

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

14560287

CABLE TIE,207.00mm L

6шт.

3

87485965

FLEXIBLE HOSE

1шт.

4

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

5

47057026

RETAINING PLATE

1шт.

6

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

1шт.

7

87485964

FLEXIBLE HOSE

1шт.

8

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

5185524

HYD CONNECTOR

2шт.

10

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

11

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

12

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

13

47057077

SOCKET

2шт.
