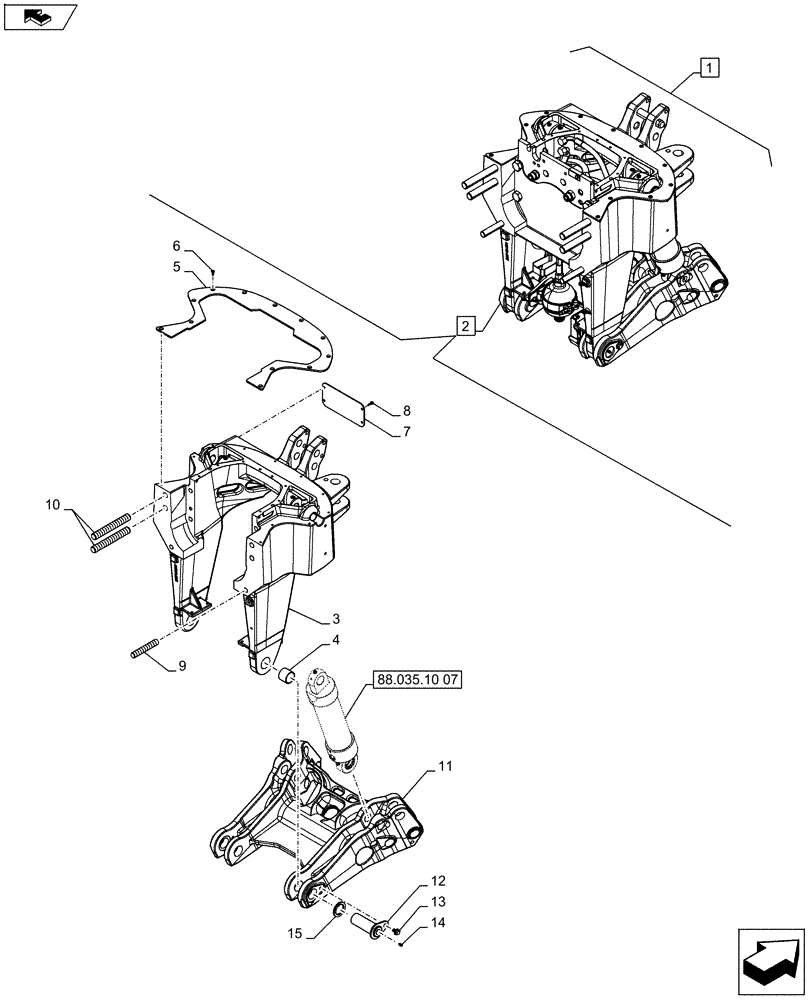

Запчасти Case IH PUMA 230 (88.035.10[01]) - DIA KIT - FRONT HPL FOR SUSPENDED AND STD AXLES, LESS PTO, LESS COUPLER - LIFTER, HOUSING & COVER (88) - ACCESSORIES

1

718062024

DIA KIT, TRACTOR

Front HPL for Suspended and STD Axles, Less PTO, Less Couplers, Contains Ref. 2-15

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84406892

HITCH

To see full DIA KIT composition look for all the figures where the DIA KIT P/N is shown, ASSY, Incl 3-15

1шт.

3

84470290

FRAME

1шт.

4

84423408

BUSHING

2шт.

5

84484439

PLATE

1шт.

6

14441321

HEX SOC SCREW,M6 x 16mm, Cl 8.8

12шт.

7

84410194

PLATE

1шт.

8

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

9

84473078

STUD

2шт.

10

84473072

STUD

4шт.

11

84470407

FRAME

1шт.

12

84473075

PIN

1шт.

for sensor with lenght mm.106

1шт.

12

84372465

PIN

1шт.

without sensor with lenght mm.100

1шт.

13

274247

BOLT,Hex Flg, M10 x 16mm, Stainless

2шт.

14

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

15

84485800

SPACER,40.5mm ID x 56.5mm OD x 4.5mm L

1шт.
