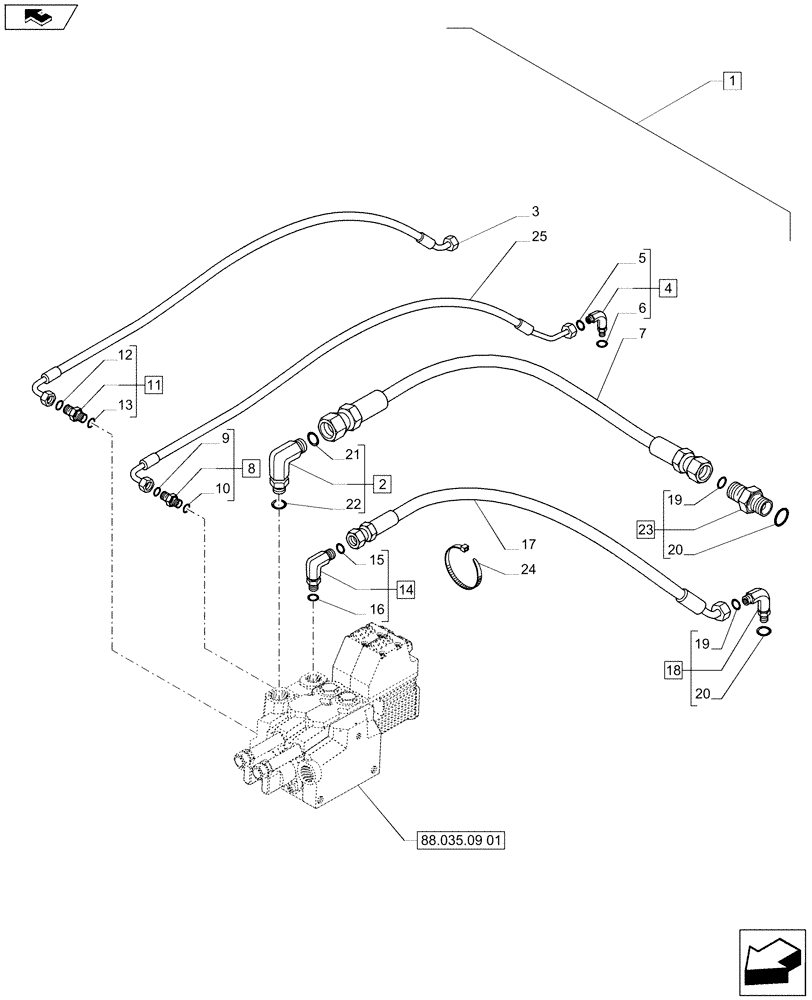

Запчасти Case IH PUMA 230 (88.035.09[02]) - DIA KIT - ELECTRONIC MID MOUNTED VALVES - PIPES (88) - ACCESSORIES

1

719980024

DIA KIT, TRACTOR

Electronic Mid Mount Kit 2 Valves + Joystick with Proportional Simultaneous Control of 3rd Service, Contains Ref. 2-25

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

5194728

90 ELBOW

Contains Ref. 21-22

1шт.

3

87616565

HOSE

LOAD SENSE

1шт.

4

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

Contains Ref. 5-6

1шт.

5

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

6

14438185

O-RING,24mm ID x 3mm

1шт.

7

87616561

HOSE

240 BAR SUPPLY

1шт.

8

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

Contains Ref. 9-10

1шт.

9

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

11

5185045

HYD CONNECTOR

Contains Ref. 12-13

1шт.

12

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

13

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

14

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

Contains Ref. 15-16

1шт.

15

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

16

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

17

87616564

HOSE

Servo Return

1шт.

18

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

Contains Ref. 19-20

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

20

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

23

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Contains Ref. 19-20

1шт.

24

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

25

84231195

HOSE

24 BAR SUPPLY, 690MM

1шт.
