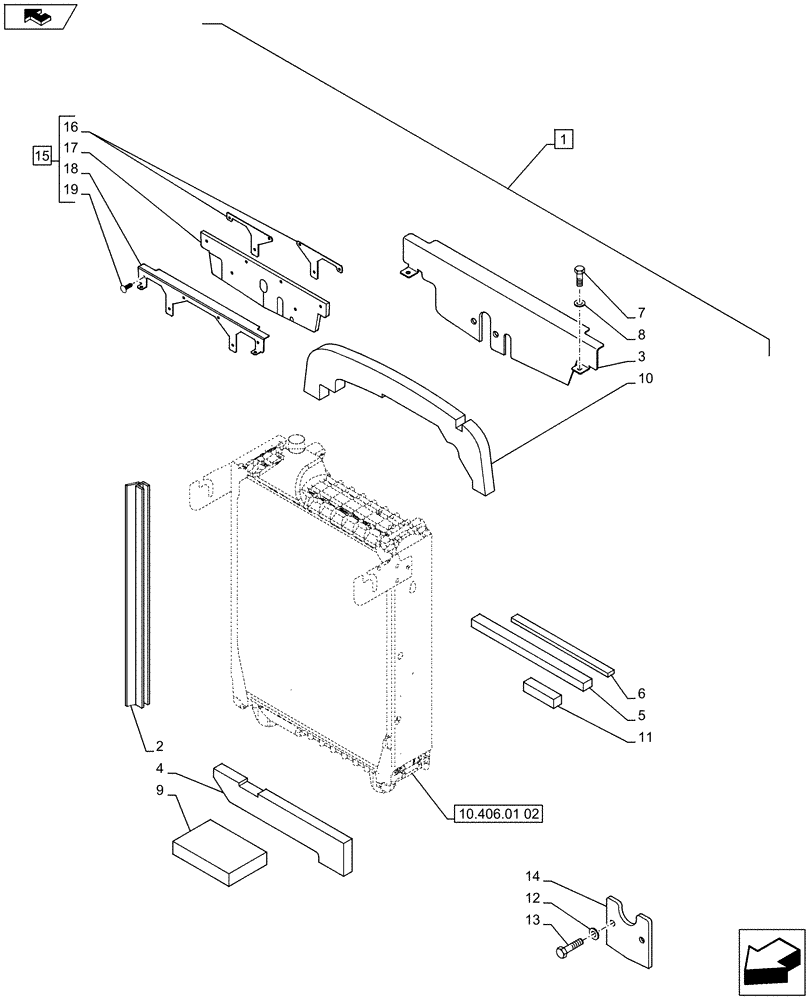

Запчасти Case IH PUMA 230 (88.035.08[05]) - DIA KIT - FRONT HPL FOR ELECTRONIC REMOTES WITH PTO, LESS AUX. COUPLERS - RADIATOR DUCT AND SEALS (88) - ACCESSORIES

1

710064114

Front Linkage for Electronic Remote with HPL, less Aux. Coupler, Contains Ref. 2 - 15

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82039110

SEAL

2шт.

3

87701772

DEFLECTOR

, Serial Range: -C7370

1шт.

4

87380756

FOAM INSULATION

1шт.

5

82038425

SEALING STRIP,680mm x 25mm x 10mm

680MM, Blaffle, Serial Range: -C7370

1шт.

6

82038264

SEAL,510mm x 15mm x 5mm

510MM, Rad to Baffle Plate

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

8

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

9

82030145

FOAM INSULATION

Radiator Air Side

2шт.

10

82038279

SEAL

1шт.

11

84221833

GASKET

Ecu to Air Intake

1шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

, Serial Range: -C7370

2шт.

13

10979421

SCREW,Hex, M6 x 10mm, Cl 8.8

, Serial Range: -C7370

2шт.

14

87390678

PLATE

, Serial Range: -C7370

1шт.

15

84543377

DEFLECTOR

ASSY, Incl 16 - 19, Start Serial: D7370

1шт.

16

87649703

DEFLECTOR

2шт.

17

84543379

FOAM

1шт.

18

84543378

BAFFLE

1шт.

19

87635853

STUD,7.1mm D

6шт.
