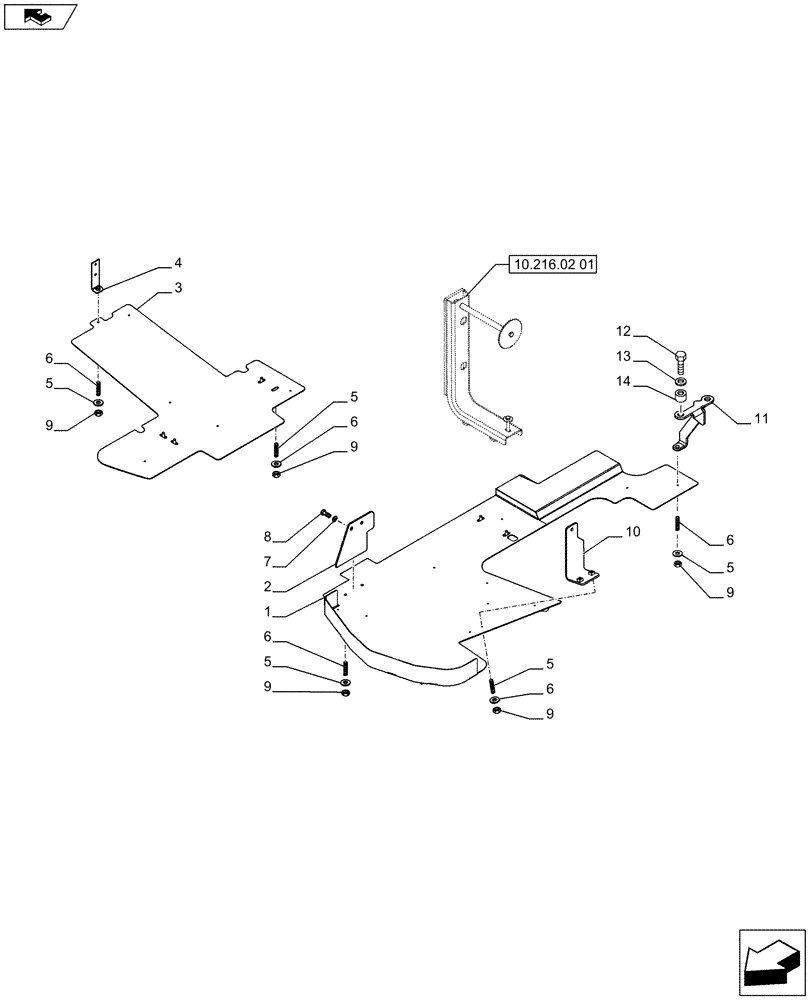

Запчасти Case IH PUMA 230 (10.216.0201) - FUEL TANK GUARDS - LOWER GUARD (VAR.744455-744456/720131; VAR.744457-744458/743100) (10) - ENGINE

1

84382699

SHIELD

1шт.

2

84394832

SUPPORT

1шт.

3

84382708

PROTECTION PLATE

1шт.

4

84260863

SUPPORT

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

6

82008683

STUD,M10 x 1.25 x 40mm L

12шт.

7

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

8

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

9

12164711

NUT,M10 x 1.25, Cl 8

12шт.

10

84382449

SUPPORT

1шт.

11

84411925

SUPPORT

1шт.

12

15239624

BOLT,Hex, M18 x 1.5 x 65mm, Cl 8.8

2шт.

Only with VAR.744456 (Commercial Feature 720131) or VAR.744458 (Commercial Feature 743100)

1шт.

13

10520321

WASHER,18.4mm ID x 32mm OD x 4mm Thk

2шт.

Only with VAR.744456 (Commercial Feature 720131) or VAR.744458 (Commercial Feature 743100)

1шт.

14

84471735

SPACER

1шт.

Only with VAR.744456 (Commercial Feature 720131) or VAR.744458 (Commercial Feature 743100)

1шт.
