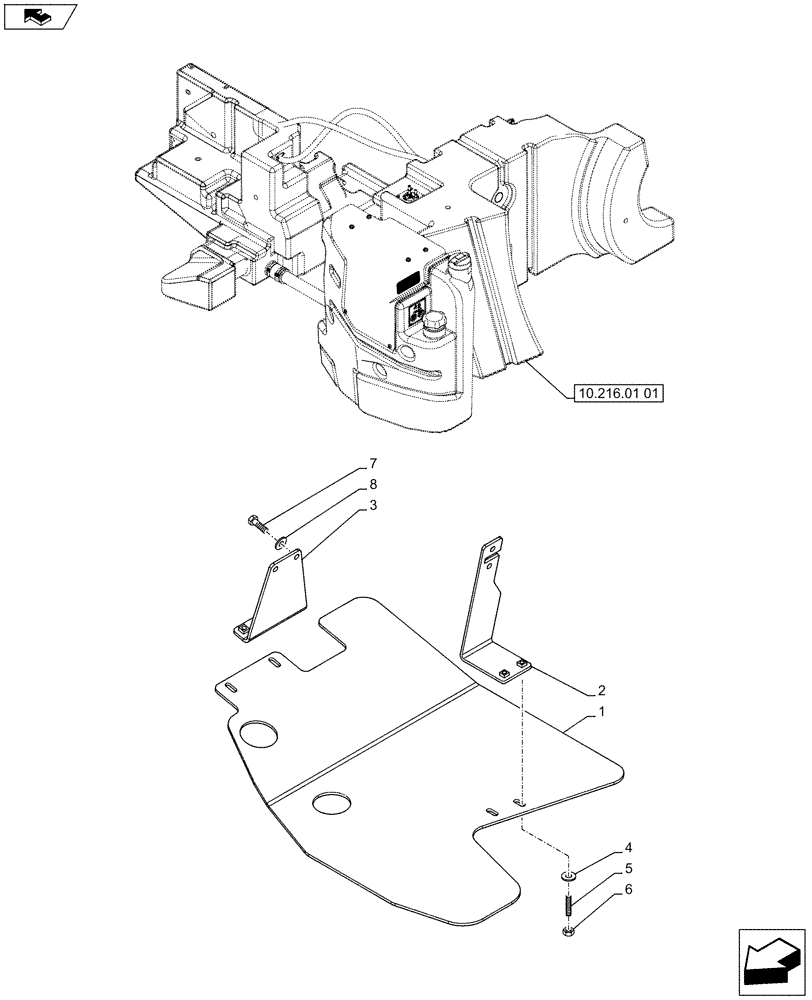

Запчасти Case IH PUMA 230 (10.216.02[02]) - LOWER GUARD (10) - ENGINE

1

84382434

PLATE

1шт.

2

84382449

SUPPORT

1шт.

3

84394832

SUPPORT

1шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

82008683

STUD,M10 x 1.25 x 40mm L

4шт.

6

12164711

NUT,M10 x 1.25, Cl 8

4шт.

7

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

8

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.
