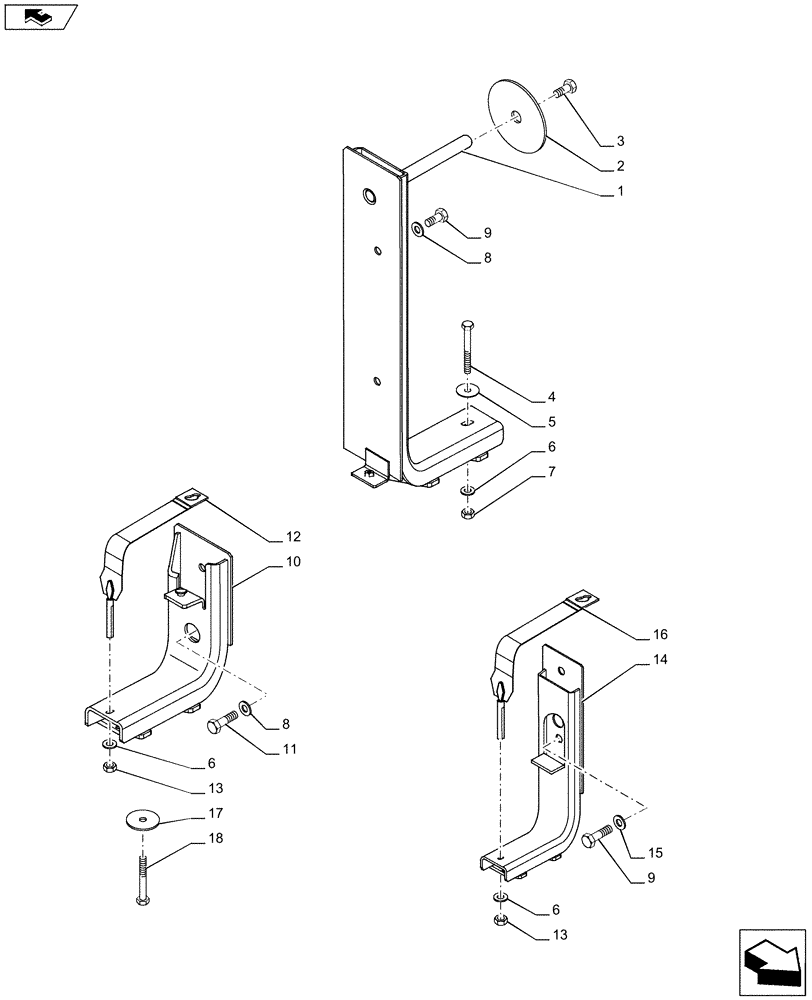

Запчасти Case IH PUMA 230 (10.216.02[01]) - FUEL TANK SUPPORTS (10) - ENGINE

1

84387622

HOLDER

1шт.

2

84388777

SPACER,11mm ID x 120mm OD x 1mm L

1шт.

3

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

4

614-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

5

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

1шт.

6

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

7

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

8

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

9

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

10

84330992

SUPPORT

1шт.

11

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

12

84312230

STRAP

1шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

14

84330727

SUPPORT

1шт.

15

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

16

84316026

STRAP

1шт.

17

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

1шт.

18

120115

BOLT,M10 x 1.5 x 76.58mm, Cl 8.8

1шт.
