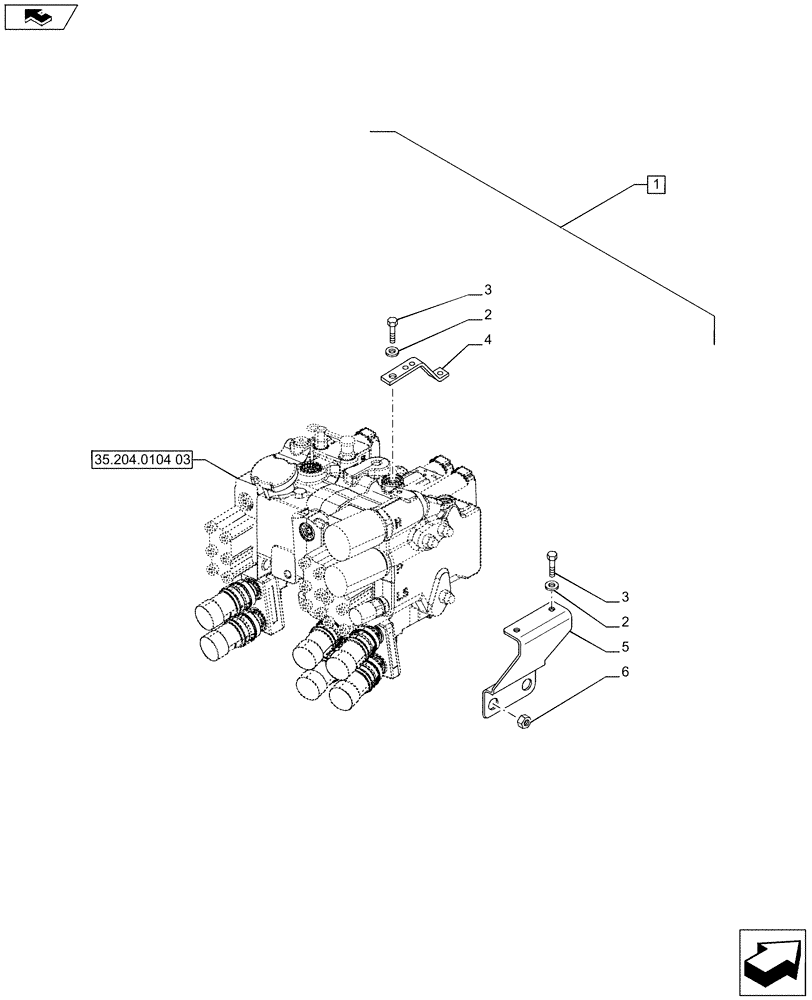

Запчасти Case IH PUMA 230 (88.033.06[09]) - DIA KIT - PNEUMATIC TRAILER BRAKE (ITALY) - BRACKET (88) - ACCESSORIES

1

718385214

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Italy), Contains Ref. 2-6

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

3

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

4

87623286

SUPPORT

With PB Racine

1шт.

5

87673953

SUPPORT

Less PB Racine

1шт.

6

11702911

NUT,M12, Cl 8, ZND

2шт.
