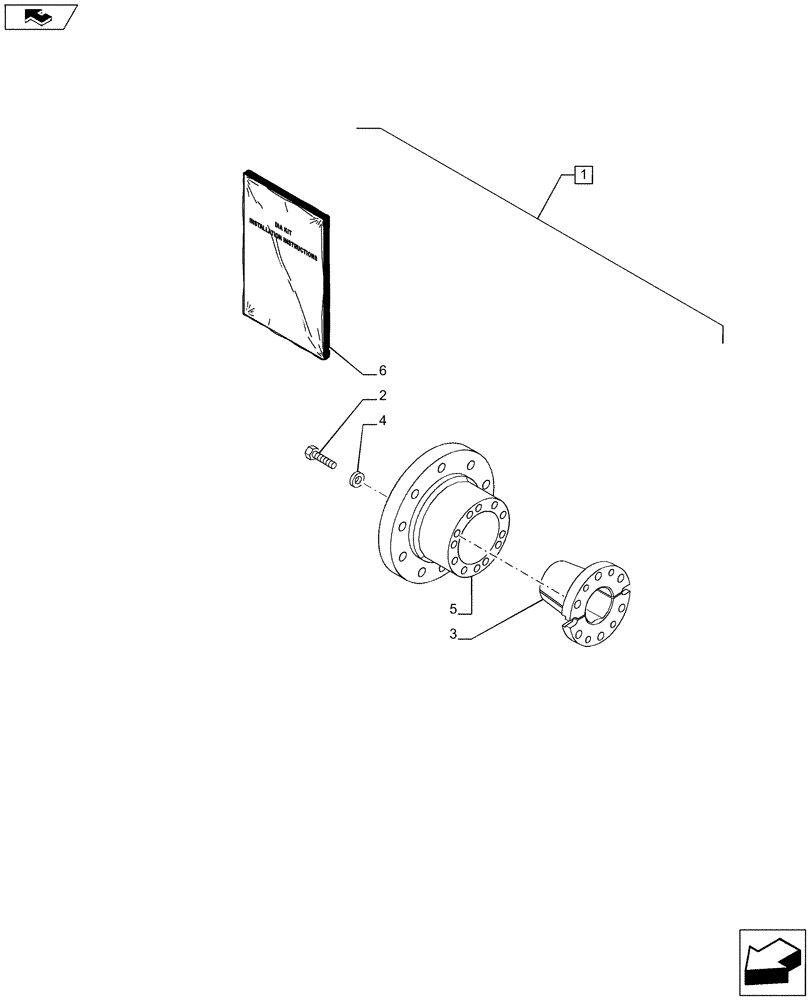

Запчасти Case IH PUMA 230 (88.027.01) - DIA KIT - 10 STUD HUB FOR BAR AXLE (88) - ACCESSORIES

1

719021014

DIA KIT, TRACTOR

10 Stud Hub Assembly for Bar Axle, Contains Ref. 2-5 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87688509

BOLT,Hex, M22 x 2.5 x 190mm

M22 x 2.5 x 190

4шт.

3

87645102

WEDGE,Lock, Silver

1шт.

4

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

22 x 42 x 5

4шт.

5

47126431

HUB

1шт.

6

84132609

INSTRUCTION

1шт.
