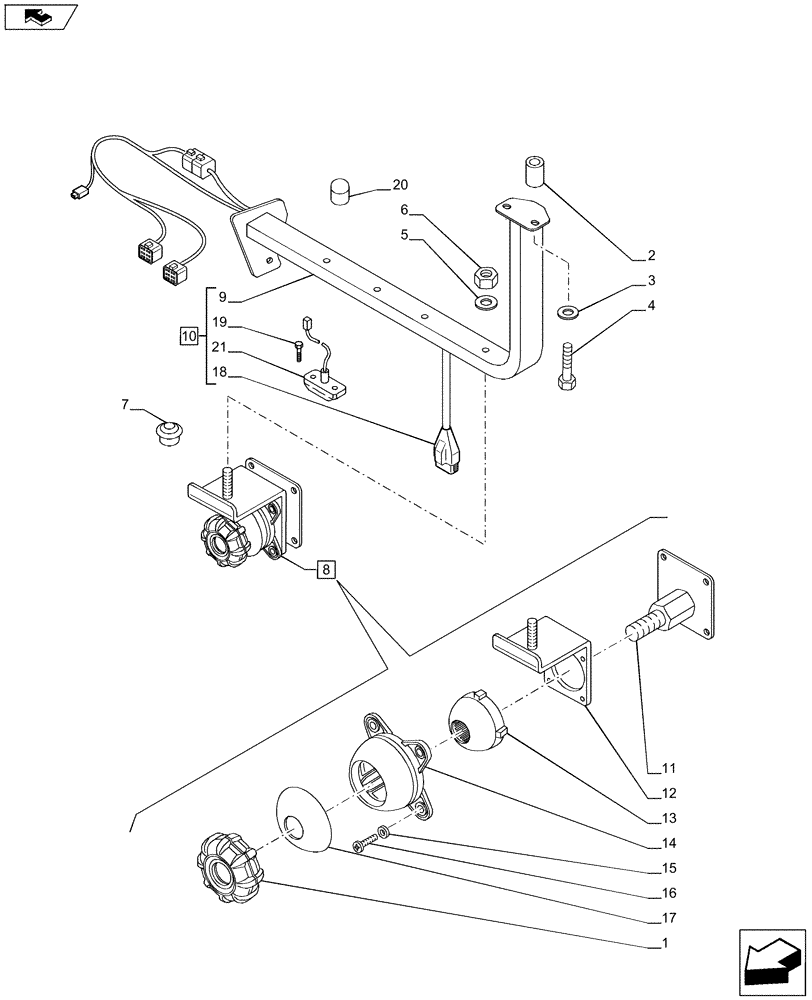

Запчасти Case IH PUMA 230 (55.440.0402) - BALER BAR DISPLAY READY - BALER BAR MOUNTING (VAR.743407) (55) - ELECTRICAL SYSTEMS

1

87316701

KNOB

1шт.

2

87681589

SPACER,8mm ID x 11mm OD x 16mm L

2шт.

3

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

4

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

2шт.

5

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

7

81862738

PLUG,M38 x 28 x 5mm

28MM

4шт.

8

87614599

SUPPORT

ASSY, Contains Ref. 1,11-17

1шт.

9

84340967

SUPPORT

1шт.

10

84361958

HOLDER

ASSY, Contains Ref. 9,18,19,21

1шт.

11

87565605

SUPPORT

1шт.

12

87614600

BRACKET

1шт.

13

87614603

CUP,Black

1шт.

14

87614602

BASE

1шт.

15

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

16

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

4шт.

17

87316706

CUP,23mm ID x 68.6mm OD, Black

1шт.

18

84174905

WIRE HARNESS

1шт.

19

86511823

SCREW,Phillips Drive, Pan HD, M4 x 8mm, Cl 4.8

2шт.

20

5132136

CAP COVER,M8

2шт.

21

87565290

LAMP

1шт.
