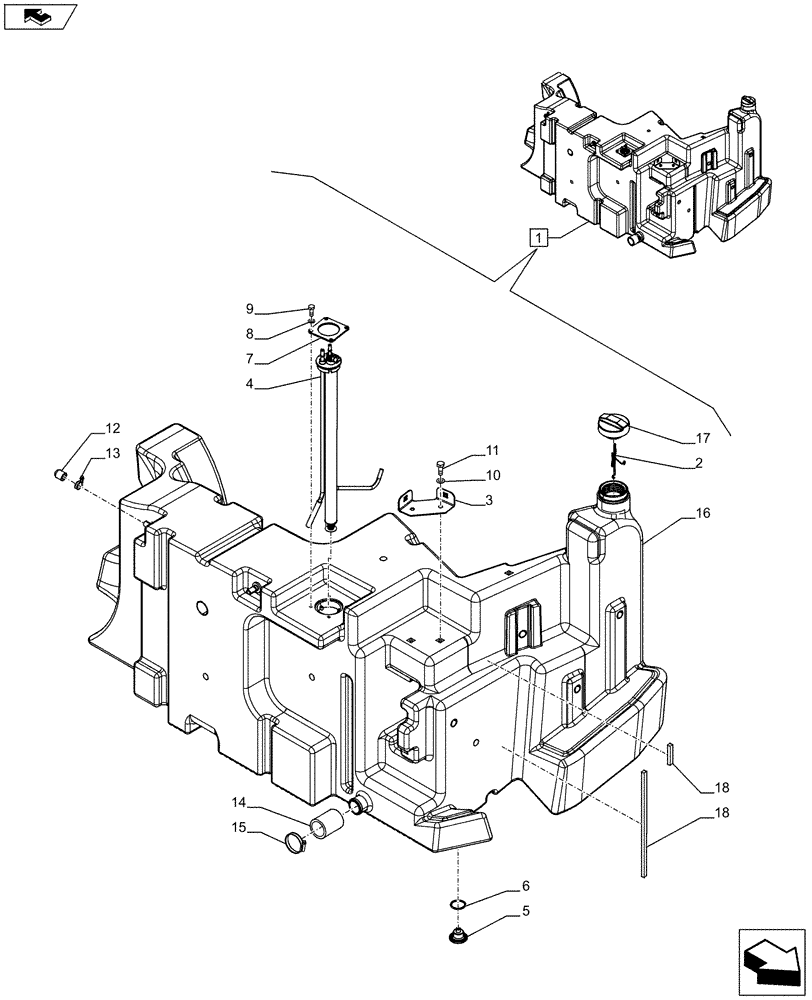

Запчасти Case IH PUMA 230 (10.216.01[02]) - FUEL TANK AND RELATED PARTS - BREAKDOWN (10) - ENGINE

1

84364721

FUEL TANK

Contains Ref. 2-18

1шт.

2

87490453

LINK CHAIN

1шт.

3

84329944

SUPPORT

1шт.

4

84174018

FUEL GAUGE

1шт.

5

84180403

DRAIN PLUG

1шт.

6

84180404

O-RING,3.5mm Thk x 39.0mm ID

1шт.

7

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

8

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

12

83952371

CAP,15mm ID X 25mm

1шт.

13

82039343

HOSE CLAMP,16mm - 27mm

1шт.

14

87387657

TUBE

1шт.

15

82036462

CLAMP,50mm - 70mm

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

84361242

FILLER CAP

1шт.

18

9501985

SEALING STRIP

1шт.
