Запчасти Case IH PUMA 230 (10.214.0204[02]) - ABS SYSTEM - FUEL LINE, FILTER (VAR.744726) (10) - ENGINE

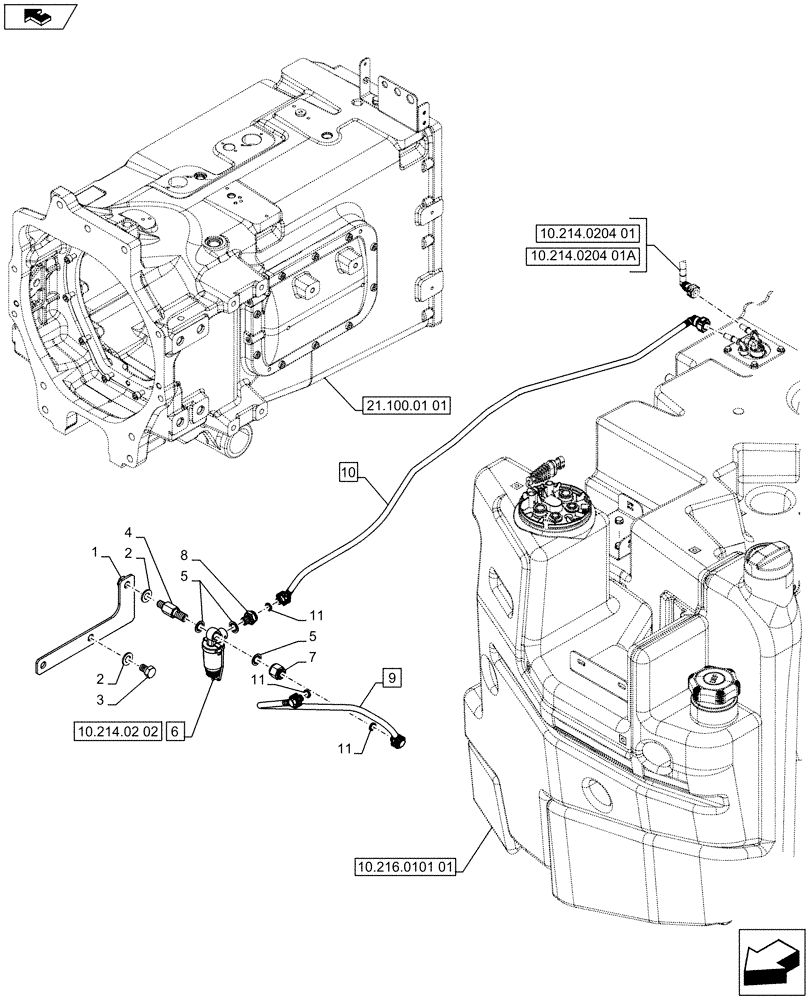

Схема запчастей Case IH PUMA 230 - (10.214.0204[02]) - ABS SYSTEM - FUEL LINE, FILTER (VAR.744726) (10) - ENGINE
2
3
4
6
11
10.216.0101 01
10.214.0204 01a
11
11
2
10
21.100.01 01
9
10.214.02 02
home
10.214.0204 01
1
5
8
7
5

Артикул

Название

Примечание

Количество

1

87591419

HOLDER

1шт.

2

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

3

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

4

87585662

HYD CONNECTOR,M12 x 1.75 x M14 x 1.5

1шт.

5

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

3шт.

6

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

ASSY

1шт.

7

87585673

HYD CONNECTOR

1шт.

8

4893833

HYD CONNECTOR

1шт.

9

84337769

FUEL TUBE

ASSY, Contains Ref. 11 (Qty 2)

1шт.

10

84535468

FLEXIBLE HOSE

ASSY, Contains Ref. 11 (Qty 1)

1шт.

11

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

3шт.

Выбрано товаров: 11
