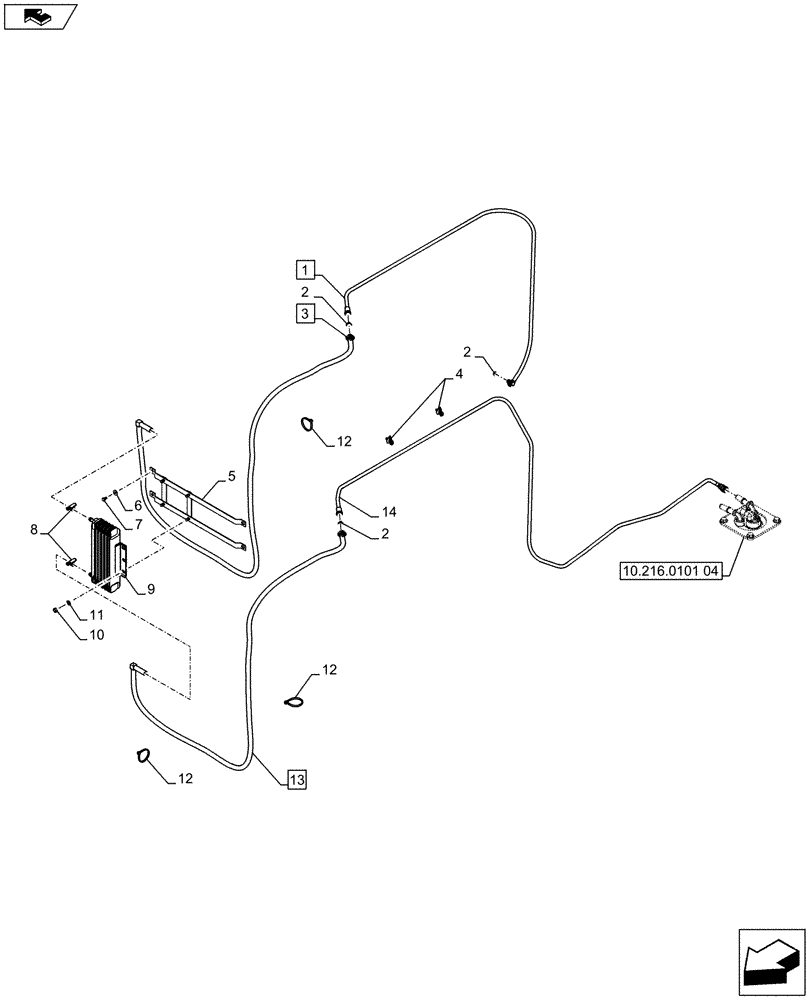

Запчасти Case IH PUMA 230 (10.214.0204[01A]) - ABS SYSTEM - FUEL COOLER AND FUEL LINE - D7381 (VAR.744726) (10) - ENGINE

1

84359923

FUEL HOSE

ASSY, Contains Ref. 2 (Qty 1)

1шт.

2

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

3шт.

3

84361571

FUEL HOSE

ASSY, Contains Ref. 2 (Qty 1)

1шт.

4

82033028

CABLE TIE,170mm L

2шт.

5

47458949

BRACKET

1шт.

6

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

8

82039341

CLAMP,12mm - 22mm

2шт.

9

84336275

FUEL COOLER

1шт.

10

336256

NUT,M8, Cl 8

4шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

86566989

CABLE TIE,208mm L

8шт.

13

84361569

FUEL HOSE

ASSY, Contains Ref. 2 (Qty 1)

1шт.

14

84598977

FUEL TUBE

ASSY

1шт.
