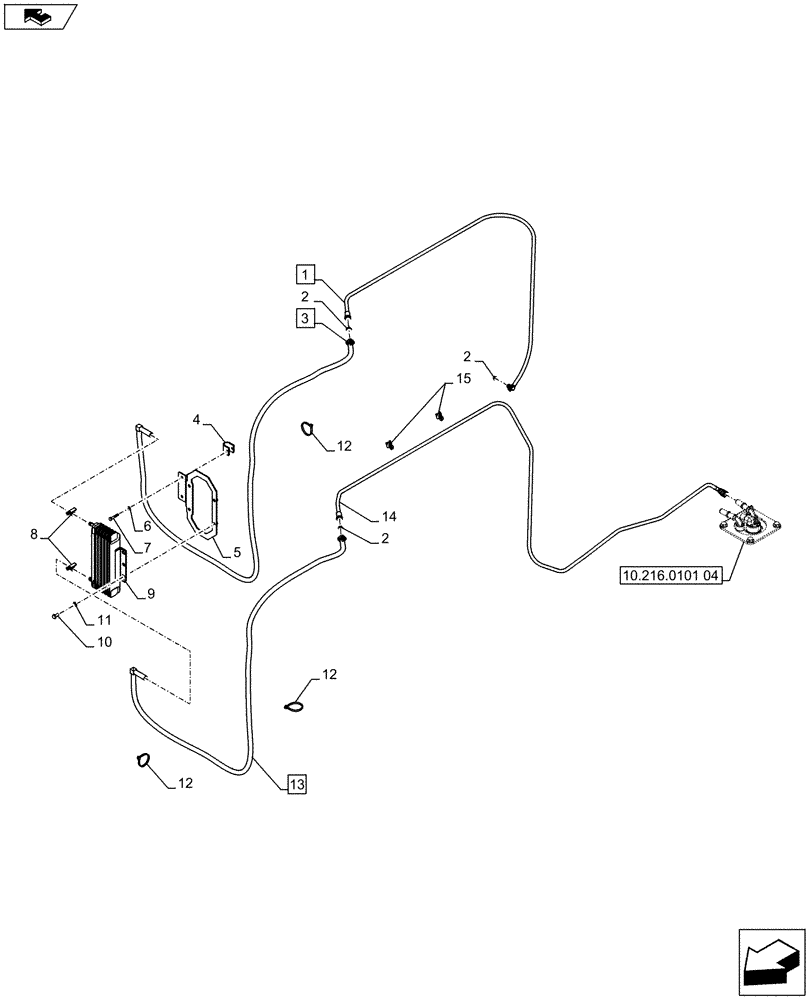

Запчасти Case IH PUMA 230 (10.214.0204[01]) - ABS SYSTEM - FUEL COOLER AND FUEL LINE - C7381 (VAR.744726) (10) - ENGINE

1

84359923

FUEL HOSE

ASSY, Contains Ref. 2 (Qty 1)

1шт.

2

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

3шт.

3

84361571

FUEL HOSE

ASSY, Contains Ref. 2 (Qty 1)

1шт.

4

84372340

PLATE

2шт.

5

84403070

PLATE

1шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

7

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

8

82039341

CLAMP,12mm - 22mm

2шт.

9

84336275

FUEL COOLER

1шт.

10

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

86566989

CABLE TIE,208mm L

8шт.

13

84361569

FUEL HOSE

ASSY, Contains Ref. 2 (Qty 1)

1шт.

14

84598977

FUEL TUBE

ASSY

1шт.

15

82033028

CABLE TIE,170mm L

2шт.
