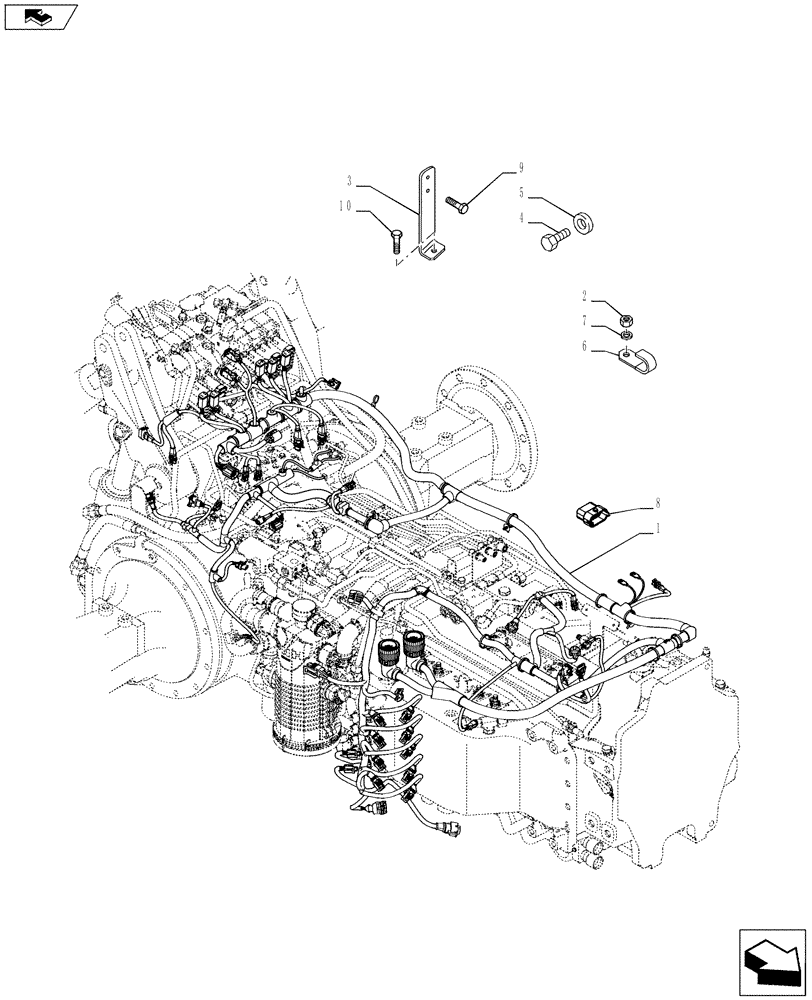

Запчасти Case IH PUMA 230 (55.100.02) - REAR MAIN CABLE (55) - ELECTRICAL SYSTEMS

1

84347391

HARNESS

Drive Line

1шт.

2

83958007

NUT,M8, G8

1шт.

3

87697075

SUPPORT

1шт.

Hand Brake Bracket to Harness

1шт.

4

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

5

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

D=8

1шт.

6

5171792

CLAMP

1шт.

7

82879382

WASHER

D=8

1шт.

8

84206934

ELEC CONNECTOR

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

10

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.
