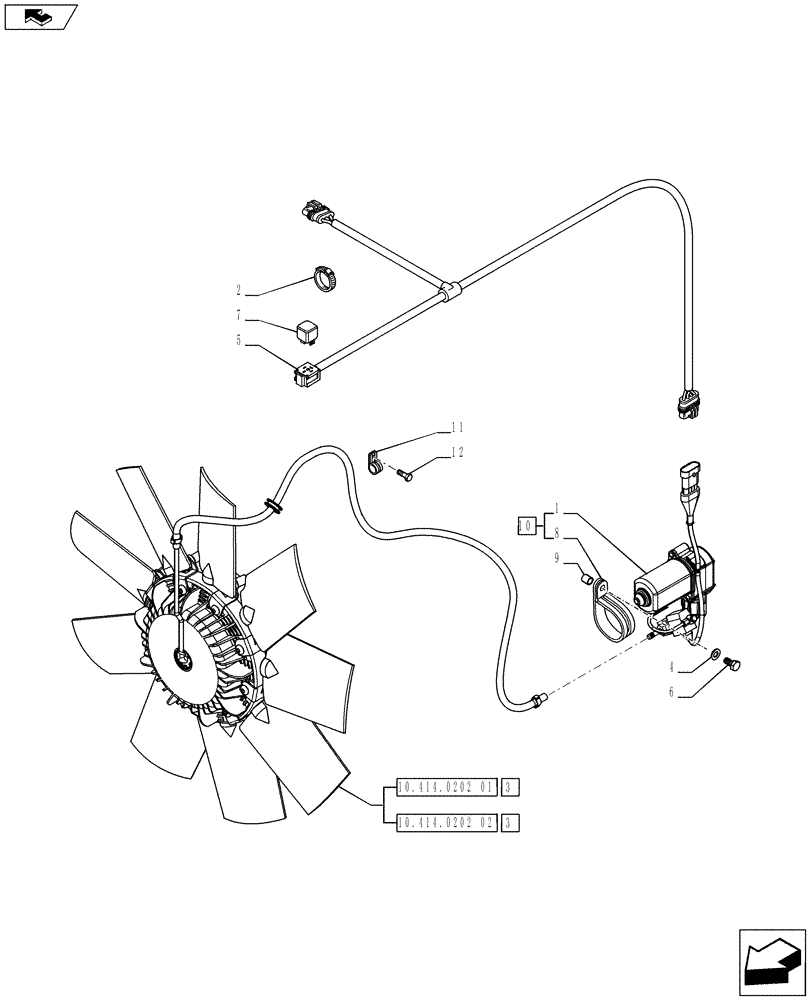

Запчасти Case IH PUMA 230 (55.100.0101) - REVERSIBLE FAN (VAR.743041-743132 / 743601) (55) - ELECTRICAL SYSTEMS

1

87683927

AIR COMPRESSOR

1шт.

2

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

Reversible Fan For Front Axle Suspension, VAR.743132

1шт.

2

9994404

HOSE CLIP

1шт.

Reversible Fan, VAR.743041

1шт.

3

84171581

FAN

1шт.

Reversible Fan For Front Axle Suspension, VAR.743132

1шт.

3

84355613

FAN

ASSY

1шт.

Reversible Fan, VAR.743041

1шт.

4

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

5

87677188

WIRE HARNESS

1шт.

6

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

Reversible Fan For Front Axle Suspension, VAR.743132

1шт.

6

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

Reversible Fan, VAR.743041

1шт.

7

82017871

RELAY,12V, 20A

1шт.

8

87683928

CLAMP

1шт.

9

13611211

SPACER,8.5mm ID x 15mm OD x 23mm L

1шт.

10

87683892

AIR COMPRESSOR

ASSY, Contains Ref. 1,8

1шт.

11

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

12

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.
