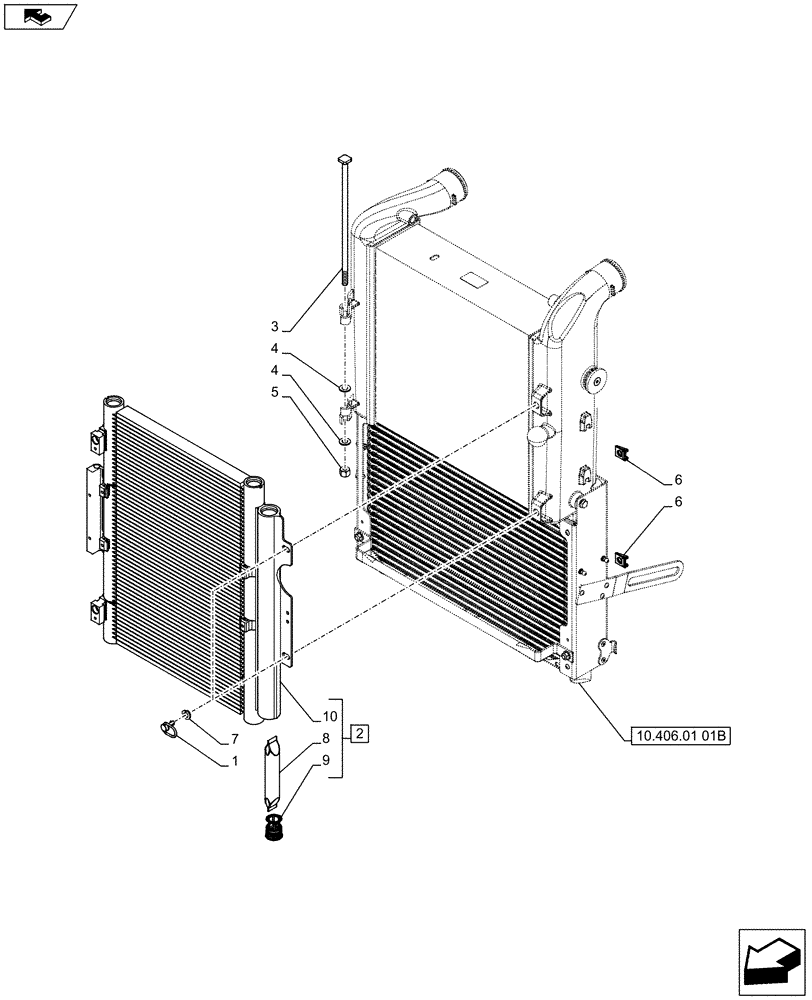

Запчасти Case IH PUMA 230 (50.200.05) - CONDENSER - D7381 (50) - CAB CLIMATE CONTROL

1

87734728

STUD,5mm OD x 56mm L

2шт.

2

47392187

CONDENSER

ASSY, Incl 8 - 10

1шт.

3

47577329

PIN,10mm OD x 281mm L

1шт.

4

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

2шт.

5

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

6

87734730

SPRING CLIP

2шт.

7

84137543

SNAP RING

Retainer, 1/4 Turn

2шт.

8

47580889

RECEIVER-DRYER

1шт.

9

47580879

FILTER

1шт.

10

NSS

NOT SOLD SEPARAT

Condenser, Incl in 2

1шт.
