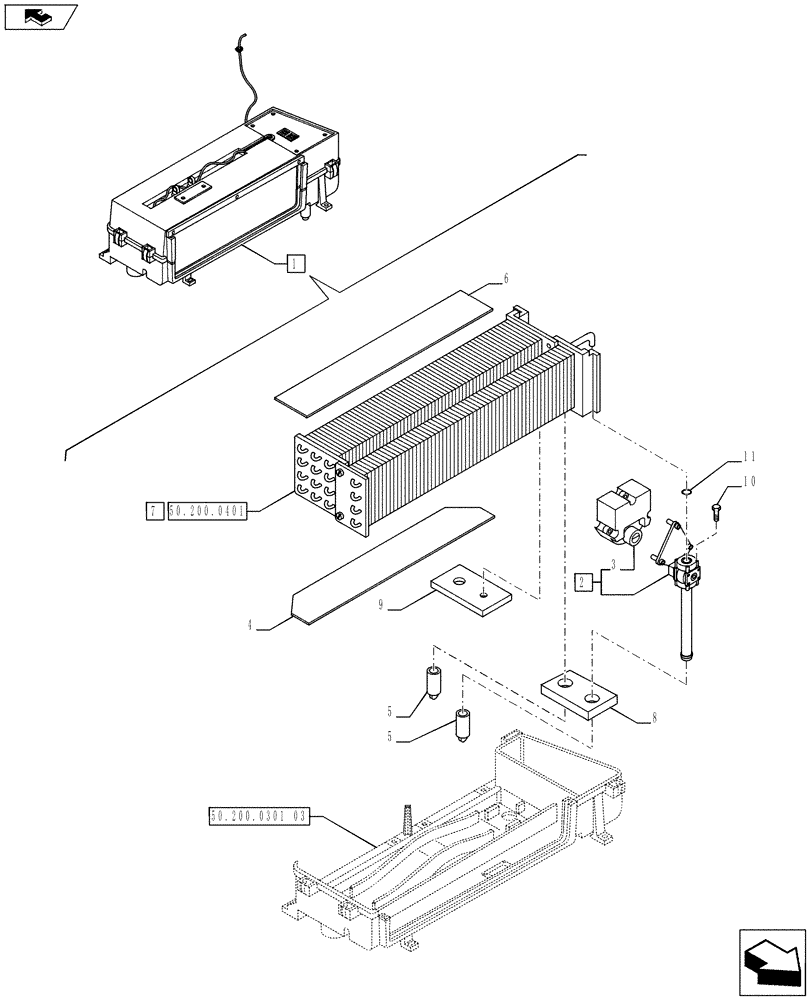

Запчасти Case IH PUMA 230 (50.200.0301[02]) - AUTOMATIC CLIMATE CONTROL - AIR CONDITIONER - BREAKDOWN (VAR.729098) (50) - CAB CLIMATE CONTROL

1

84233168

AIR CONDITIONER

ASSY, Contains Ref. 2-11

1шт.

2

87540537

SHUT-OFF VALVE

Contains Ref. 3

1шт.

3

87541625

ACTUATOR

1шт.

4

82033453

PLATE

1шт.

5

82033261

CAP,5/8"

2шт.

6

82033109

SEAL,3mm Thk, Grey

1шт.

7

82037665

AIR CONDITIONER

HEAT EXCHANGER ASSY

1шт.

8

82028943

SEAL,20mm Thk

1шт.

9

82028953

SEAL

1шт.

10

82037676

SCREW,Torx, Pan HD, 10 x 7

4шт.

11

82037703

O-RING,3.17mm Thk x 15.88mm ID

1шт.
