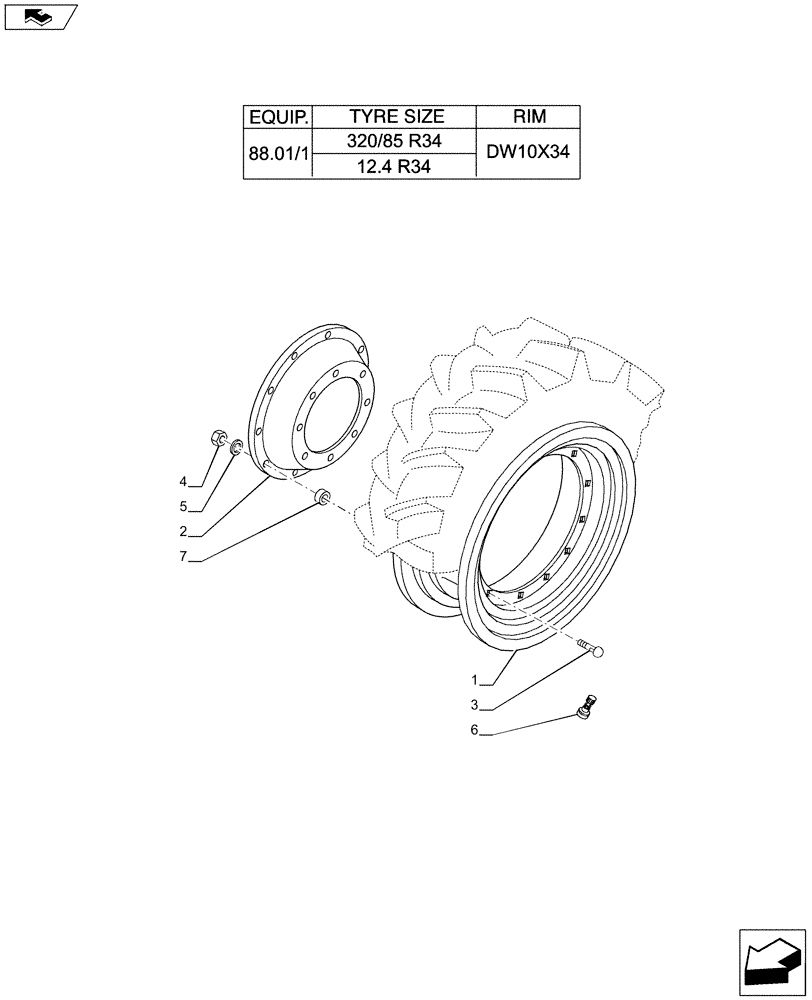

Запчасти Case IH PUMA 230 (44.511.02[10]) - 4WD FRONT WHEELS (44) - WHEELS

1

82037254

RIM,DW10X34, 254mm W, 8 Bolts, Case Silver

DW10 x 34

2шт.

2

82031109

WHEEL DISC,685.8mm Dia (405mm Dia), 12 Bolts, CASE Silver

2шт.

3

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

24шт.

4

12164124

NUT,M16 x 1.5, Cl 8

24шт.

5

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

24шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

82031090

SPACER,16.5mm ID x 31mm OD x 15mm L

24шт.
