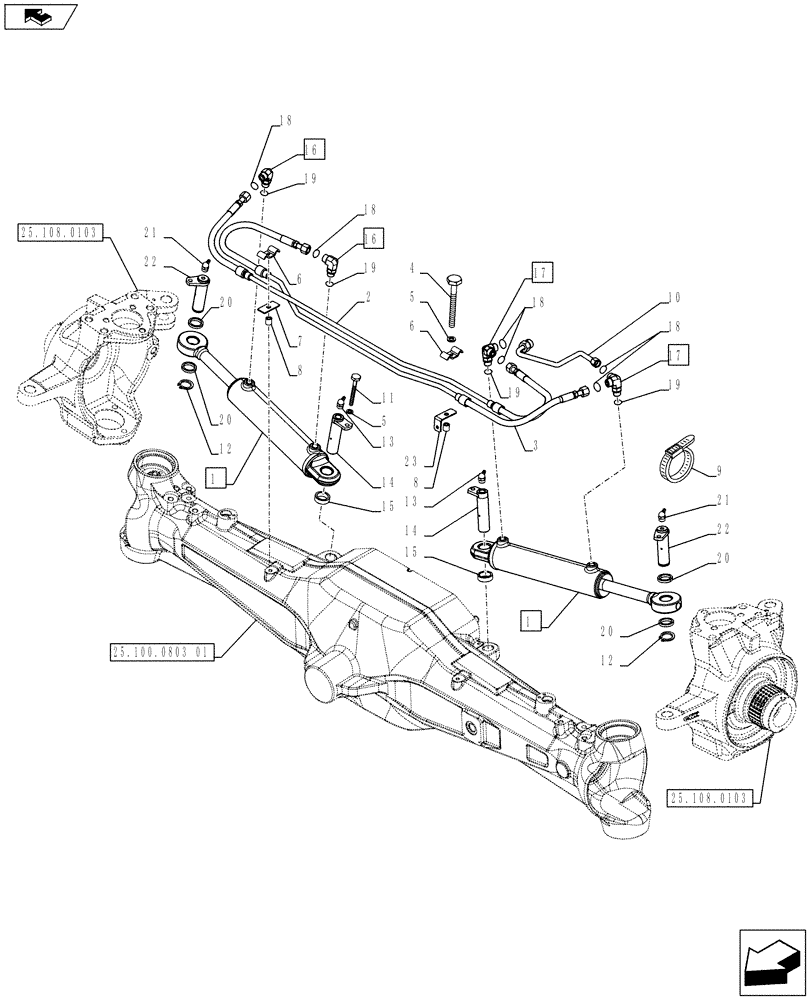

Запчасти Case IH PUMA 230 (41.216.0103) - ABS SYSTEM - 4WD FRONT AXLE WITH SUSPENSION AND BRAKES - HYDRAULIC STEERING CYLINDER AND PIPES (VAR.743963-743964) (41) - STEERING

1

5198883

STEERING CYLINDER,Double Acting, 25mm Rod, 232.5mm Stroke

2шт.

2

5188440

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

Right Turn

1шт.

3

5188439

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

Left Turn

1шт.

4

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

M8 x 1.25 x 30 mm

3шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

6

5188504

BRACKET

2шт.

7

5188503

BRACKET

1шт.

8

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

2шт.

9

13000990

COLLAR,60mm - 80mm, Worm Gear

60 x 80 mm

1шт.

10

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

LH

1шт.

11

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 mm

2шт.

12

11067376

SNAP RING,M25, Ext

D = 25 mm

2шт.

13

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

14

5198013

PIN,24.97mm OD x 100mm L

2шт.

15

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

D =25,5 x 34 x 11 mm

2шт.

16

47127165

90 ELBOW

90? M14 x 1.5 mm ORB 11/16-16 ORFS , ASSY, Contains Ref. 18-19

2шт.

17

5188443

90 ELBOW

ASSY, Contains Ref. 18-19

2шт.

18

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

6шт.

19

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

20

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

D = 25.5 x 34 mm

4шт.

21

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

2шт.

22

5171707

PIN,24.97mm OD x 91mm L

2шт.

23

87730142

BRACKET

1шт.
