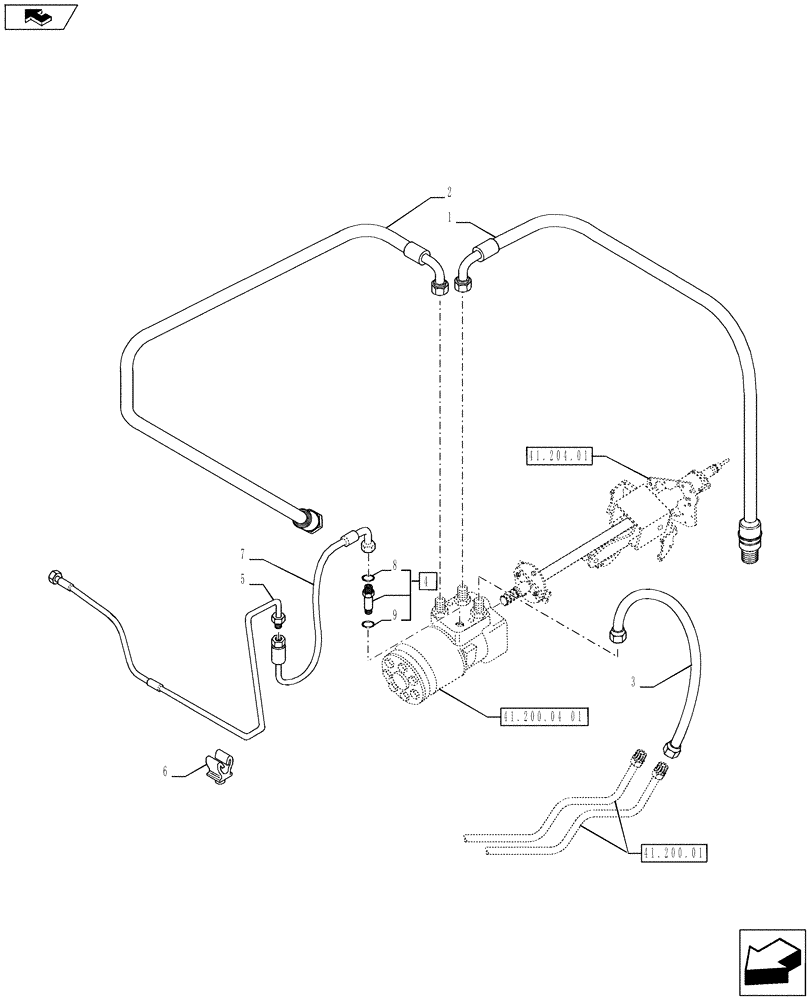

Запчасти Case IH PUMA 230 (41.200.03) - POWER STEERING DELIVERY AND RETURNS PIPES (41) - STEERING

1

87367555

HOSE ASSY.,12.7mm ID x 570mm L, SAE 100R2

Power Steering Return

1шт.

2

87367548

HOSE ASSY.,540.00mm

1шт.

3

82037164

HOSE,9.53mm ID x 685mm L, SAE 100R2

2шт.

4

87480170

HYD CONNECTOR,9/16" - 18 ORFS x M10 x 1 ORB

Contains Ref. 8,9

1шт.

5

84203518

PIPE

Load Sense

1шт.

6

87313304

CLIP

8MM

1шт.

7

84203497

HOSE

1шт.

8

3416158

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

9

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.
